Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-88

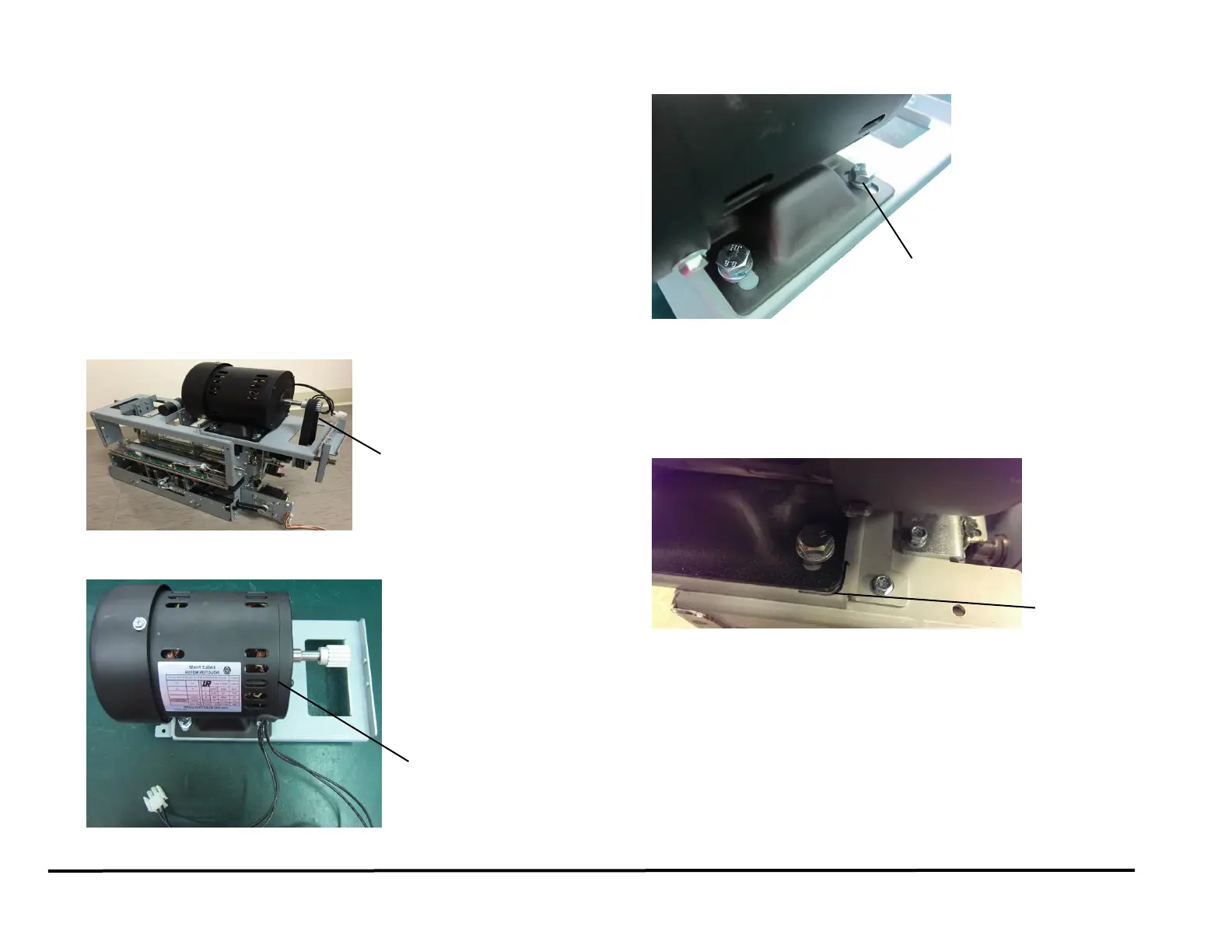

REP 3.2 Punch Motor Replacement
PARTS LIST ON PL 5.8
Use this procedure to remove and install the Punch Motor (M10).
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1 to remove the Punch Module.
5. Do REP 3.3 Punch Motor Belt Replacement (Timing Belt) to remove
the Punch Motor Belt.
6. Remove the M8 Hex Cap Screws (4), the M8 Split Lock Washers (4),
and the Flat Washers (4).
7. Remove the old Punch Motor.
Installation Procedure
1. Using the position marks on the Bracket, place the new Punch Motor
in position.
2. Place the Flat Washers (4) and the M8 Split Lock Washers (4) in
position.
3. Tighten the M8 Hex Cap Screws (4).
4. Do REP 3.3 Punch Motor Belt Replacement (Timing Belt) to install the
Punch Motor Belt.
5. Do REP 3.1 to install the Punch Module.
6. Do REP 1.6 to install the Rear Cover.
7. Connect the Power Cord.
8. Power ON the entire printing system.
Cap Screws (4),
Split Lock Washers (4),
Flat Washers (4)
To Next Page
