GBC AdvancedPunch Pro - 3.2. Frame Assembly- Front Side

Parts List 09-11-2018 GBC AdvancedPunch Pro
5-6

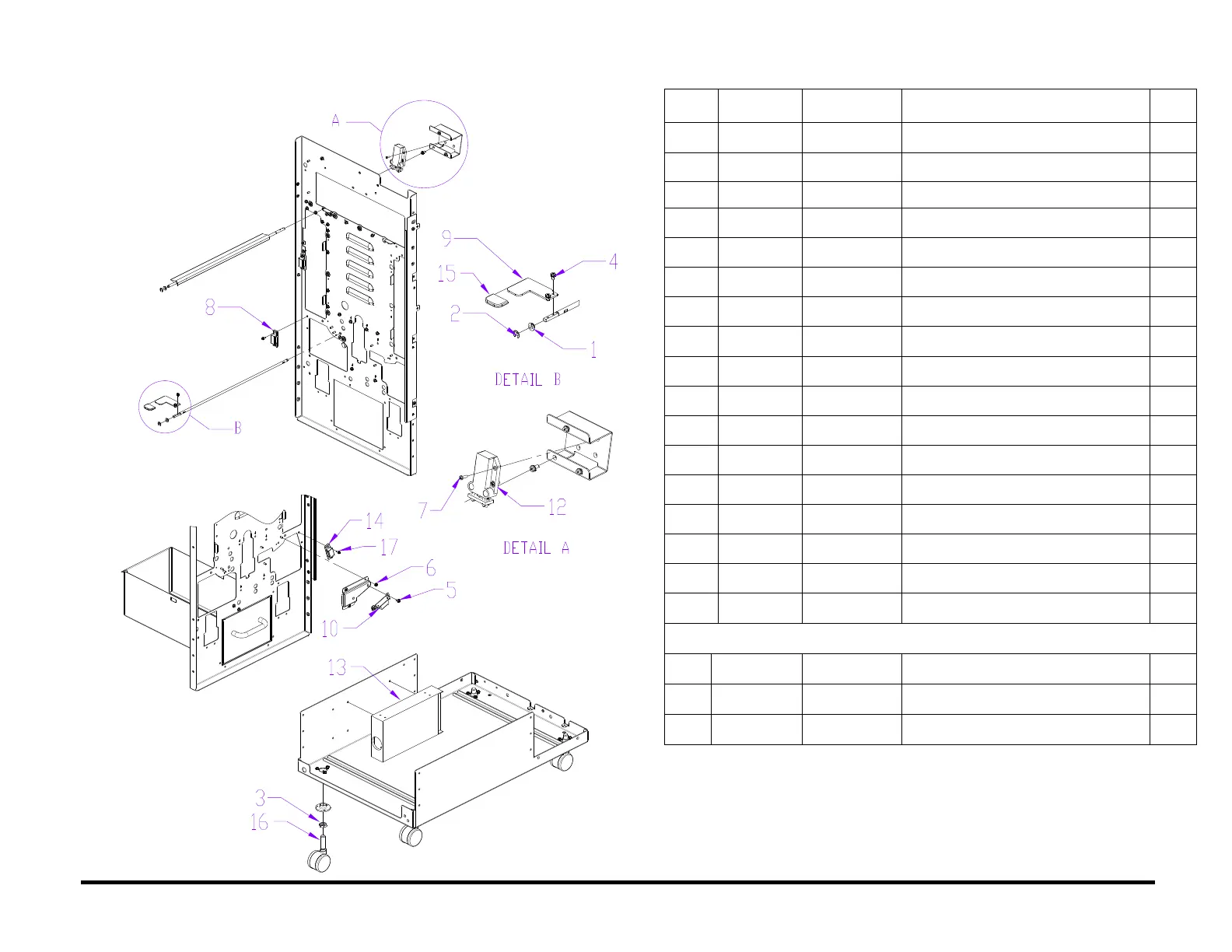

PL 3.2. Frame Assembly- Front side
ITEM
GBC Part
#
Xerox Part
#
DESCRIPTION
QTY
1
1821209
D
013N13951
D
SNAP-IN BEARING, 6MM ID
2
2
1822202
A
028N00369
A
E-RING, JE-5
4
3
1823711
B
027N00258
B
JAM NUT, M16X2.0
4
4
1823901
B
026N00825
B
SCREW, HX, W/SEMS,M3X6
2
5
1823909
B
026N00822
B
SCREW, HX, W/SEMS M4X6
2
6
1824001
B
027N00262
B
NUT, KEPS M4
3
7
1821606
B
026N00816
B
SCREW, PHILLIPS PAN HD, M3X10
6
8
7715195
121N01243
MAGNET, PANEL, OPEN, STRONG
1
9
7715215
003N01110
HANDLE, ACCEL IDLER LATCH
1
10
7715385
121N01240
MAGNET, BRACKET, ASSY
1
11
7715427
005N00686
CHIP TRAY, ASSEMBLY
1
12
7715650
003N01106
LATCH, BYPASS
1
13
7715637
105N02293
POWER SUPPLY, 24V, MW SP 480,
1
14
7715789
121N01244
MAGNET, PANEL, OPEN, WEAK
3
15
7708163
021N02267
CAP, RUBBER, RAIN BLUE
2
16
7715630
017N00300
CASTER, ADJUSTABLE
4
17
1823913
B
026N00818
B
SCREW, HX, W/SEMS, M3 X 8
8
Parts identified above with superscripts are part of Hardware kits.
A
7715973
600N03432
KIT, HARDWARE, RINGS
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
D
7715976
600N03435
KIT, HARDWARE, BEARINGS
