REP 1.19 Exhaust Fan Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Exhaust Fan.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Remove the Screws (2) and the Exhaust Fan Bracket.
5. Do the following to remove the Exhaust Fan from the Exhaust Fan
Bracket.
 Disconnect Cable 7715267 at Connector J20 on the Control
Board (PL 7.1 and PL 7.4).
 Open the Wires Saddles.
 Remove the Screws (4) from the front and the Nuts (4) from the
rear of the Bracket.
 Remove the Exhaust Fan.
Installation Procedure
1. Do the following to install the Exhaust Fan on the Exhaust Fan
Bracket.
 Place the new Exhaust Fan in position on the Exhaust Fan
Bracket. The arrow on the Fan housing indicates the direction of
air flow. The air flow direction is pointing out, air flowing out of the
machine.

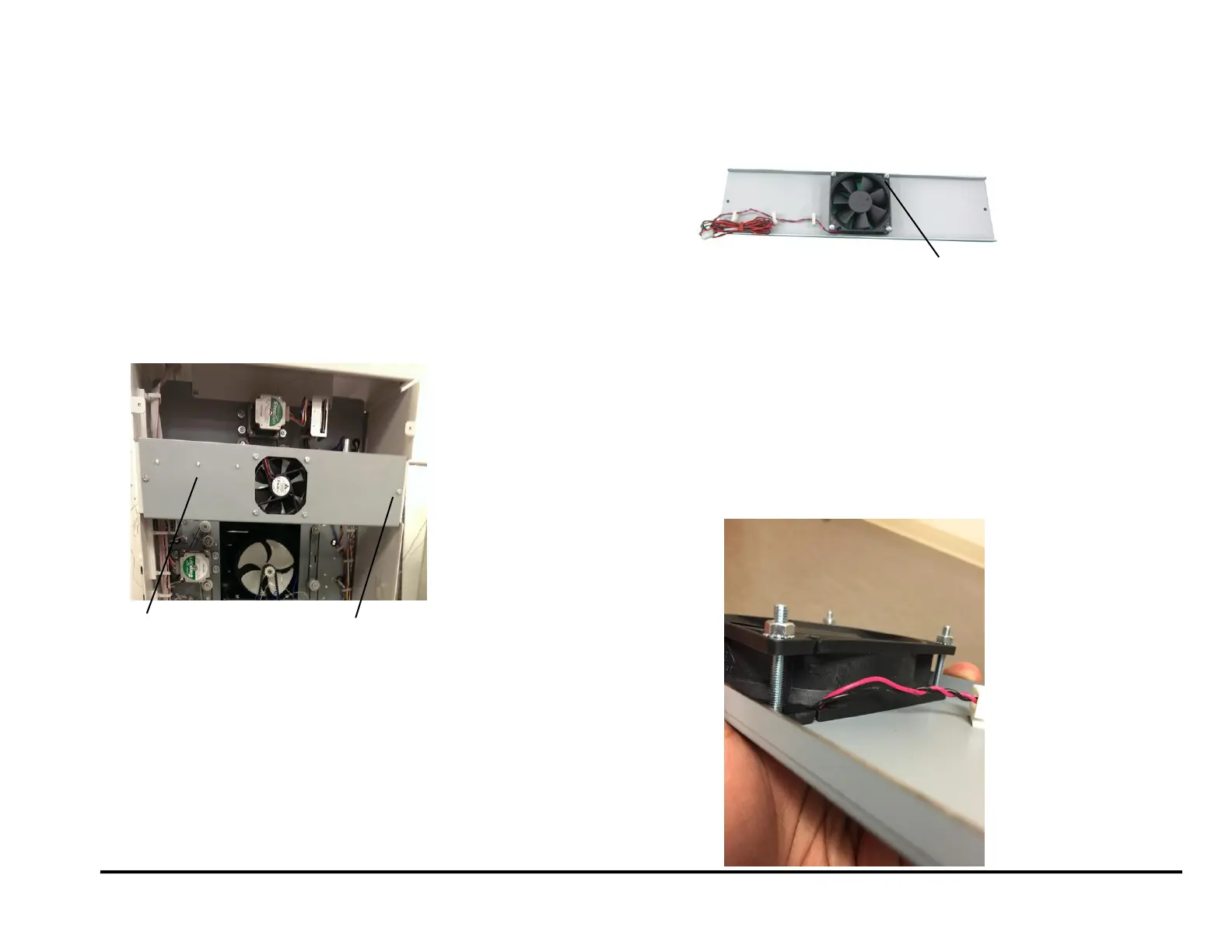

Exhaust Fan
Bracket
Screws (2)
Nuts (4)
