GBC AdvancedPunch Pro - Install the Lift Kit Assembly

Installation Instructions- DFA 08/20/2015 GBC AdvancedPunch Pro
8-6
8.3.1 Install the Lift Kit Assembly

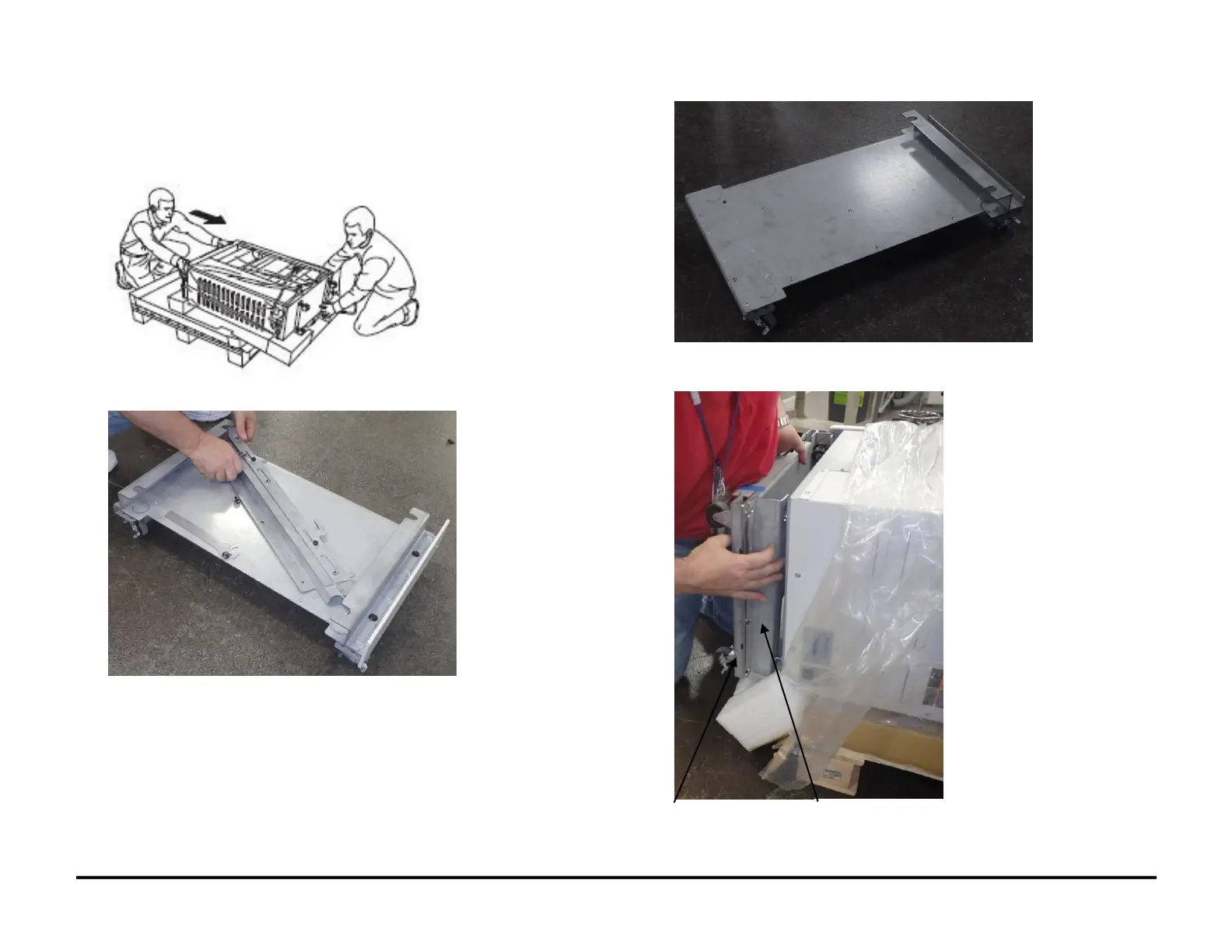

1. Have two (2) people shift the AdvancedPunch Pro and the lower
packaging toward the end of the pallet until there is enough room to
attach the Lift Kit.
1. Unpack the Lift Kit.
2. Remove the following items from the Lift Kit Assembly (see Drawing #
049K33580).
 Locking Bracket
 Caster Wrench
 Lift Cover
 M 4X10 Screw (2)
 M 6X16 Screw (2)
 DFA Cable, 18 Ft.
 Install Instructions
3. Place the Lift Kit Assembly and the Locking Bracket in place against
the bottom of the AdvancedPunch Pro.
Locking Bracket
Lift Kit Assembly
