Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-80
REP 2.28.4 Exit Idler Solenoid Replacement
PARTS LIST ON PL 4.4
Use this procedure to remove and install the Exit Idler Solenoids (SOL 6,
SOL 7, & SOL 8)
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do GP 6.4 Undock the Punch.
4. Do REP 1.11 to remove the Lower Downstream Side Frame Cover.
5. Open the Front Door.
6. Disconnect the Solenoid Connector.
7. Open the Cable Clamps and remove the Cable.

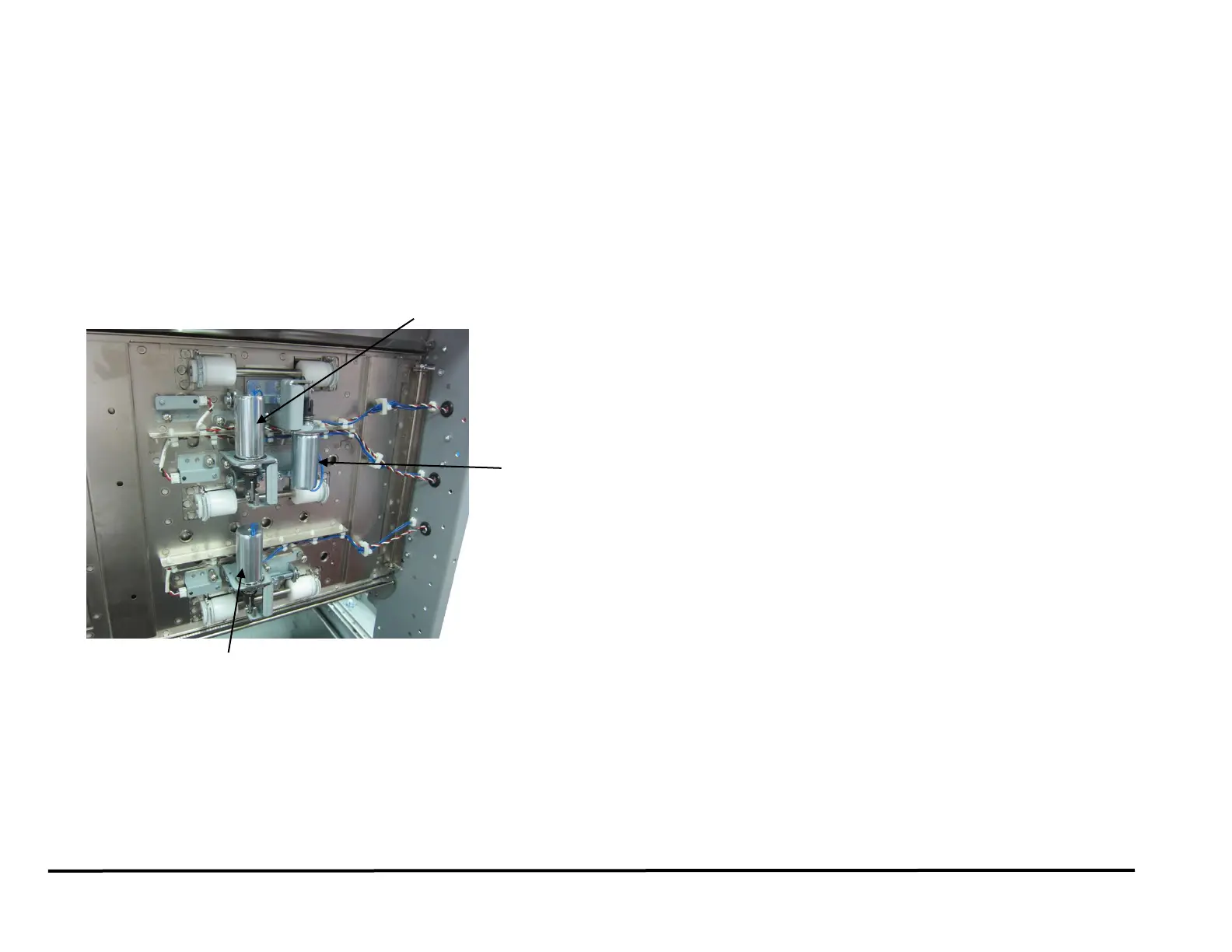

8. Remove the M4 Barrel Screws (3) and the Solenoid.
9. Place the new Solenoid in position and tighten the Screws (3).
10. Connect the Solenoid Connector.
11. Place the the Cable into the Cable Clamps and close the Cable
Clamps
12. Close the Front Door.
13. Do GP 6.3 Dock the Punch.
14. Connect the Power Cord.
15. Power ON the entire printing system.
