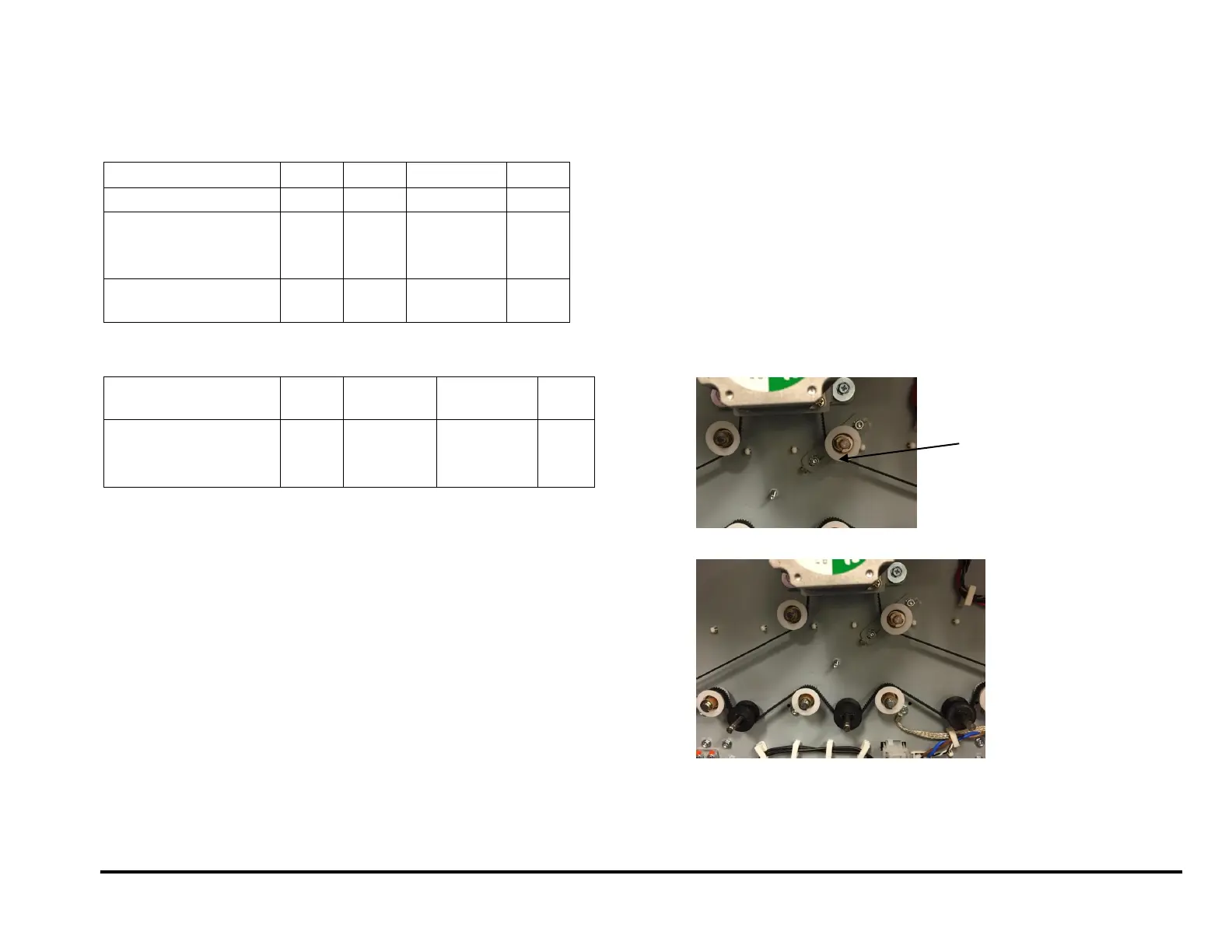

REP 2.21 Timing Belt Replacement
There are eight (8) belts used at the rear of the Frame in the
AdvancePunch Pro.
Fie (5) belts connect to motors.
Type of Belt
#
Motor
REP
Page
Belt, 534T, 2MM 2GT
1 belt
M8
REP 2.21.1
4-55
Belt, 134T, 2MM 2GT
3 belts
M1
M6
M7
REP 2.21.2
4-56
Belt, 179T, 2MM 2GT,
6MM Wide
1 belt
M2
REP 2.21.4
4-56
Three (3) belts are used to connect two nip rollers.
Type of Belt
#
Connects
Rollers
RAP
Page
Belt, 150 T, 2MM 2GT
3 belts
N1 and N2
N2 and N3
N8 and N9
REP 2.21.3
4-56
Use the following procedures to replace the belts.
REP 2.21.1 534T Belt Replacement
PARTS LIST ON PL 3.9
Use this procedure to remove and install the 534T Belt for the Bypass
Motor (M8).
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Loosen the Tensioner and remove the old Belt.
5. Place the new Belt in position around the Pulleys (11).
6. Adjust the Belt Tension, ADJ 1.4.2
7. Do REP 1.6 to install the Rear Cover.
8. Connect the Power Cord.
9. Power ON the entire printing system.
Tensioner
