GBC AdvancedPunch Pro - ADJ 1.4 Timing Belts Adjustment

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-127
ADJ 1.4 Timing Belts Adjustment
PARTS LIST ON PL 3.9
Use the below procedures for adjusting the tensions of timing belts.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
ADJ 1.4.1 Alignment Stepper (M5) Belt Adjustment
PARTS LIST ON PL 5.3
Use this procedure to adjust the Alignment Stepper Belt tension.
1. Disconnect the Power Cord.
2. Do REP 1.6 to remove the Rear Cover.
3. Do REP 3.1 to remove the Punch Module.

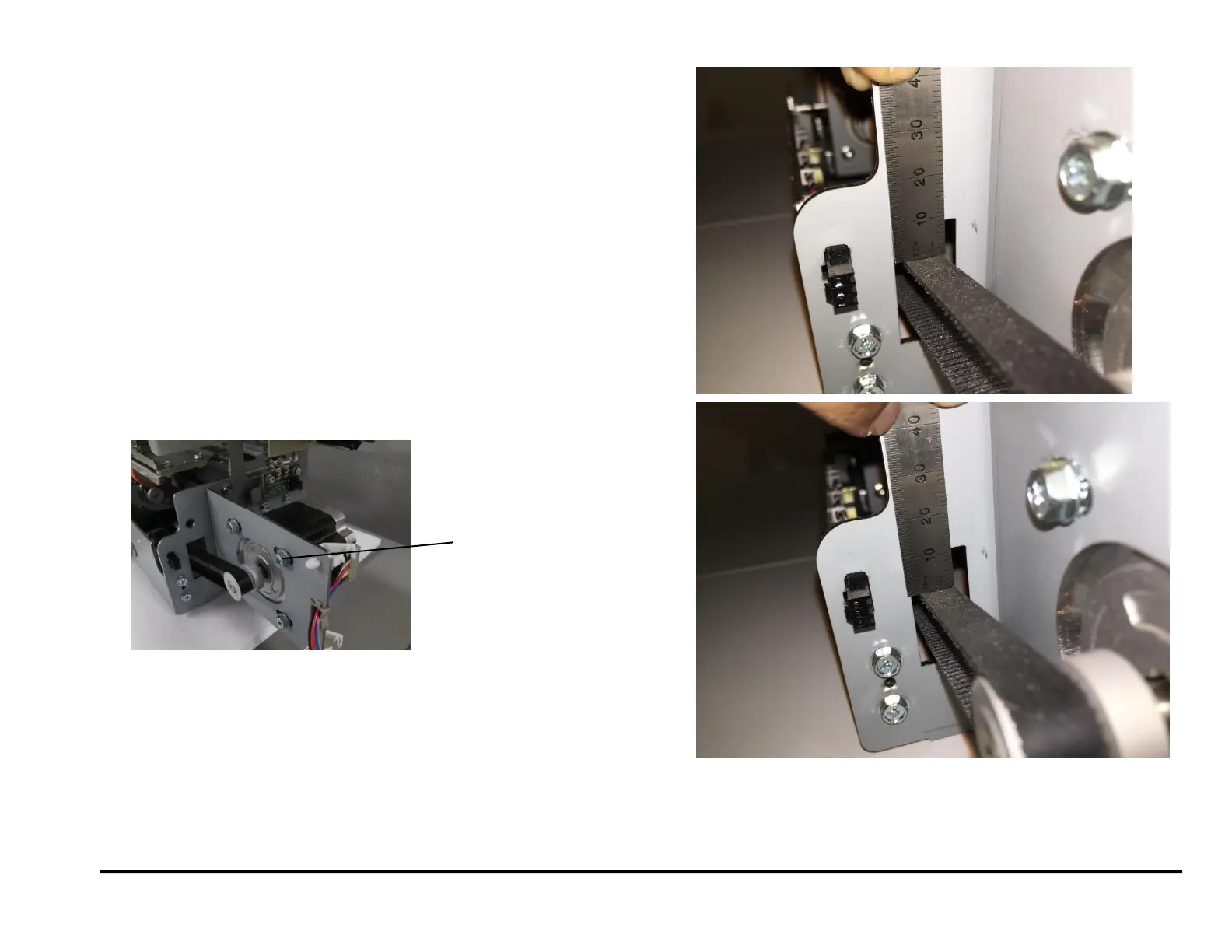

4. Loosen the Phillips Screws (4).
5. Adjust the belt tension such that there is a deflection of 1~2mm.
6. Tighten the Phillips Screws (4).
7. Do REP 3.1 to install the Punch Module.
8. Do REP 1.6 to install the Rear Cover.
9. Connect the Power Cord.
Screws (4)
