GBC AdvancedPunch Pro - REP 2.11 Panel Close Magnet Replacement

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-43
REP 2.11 Panel Close Magnet Replacement
PARTS LIST ON PL 3.2
Use this procedure to remove and install the Magnet and Magnet Bracket
for the Entrance Idler Panel, the Exit Idler Panel, or the Upper Bypass
Panel.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.

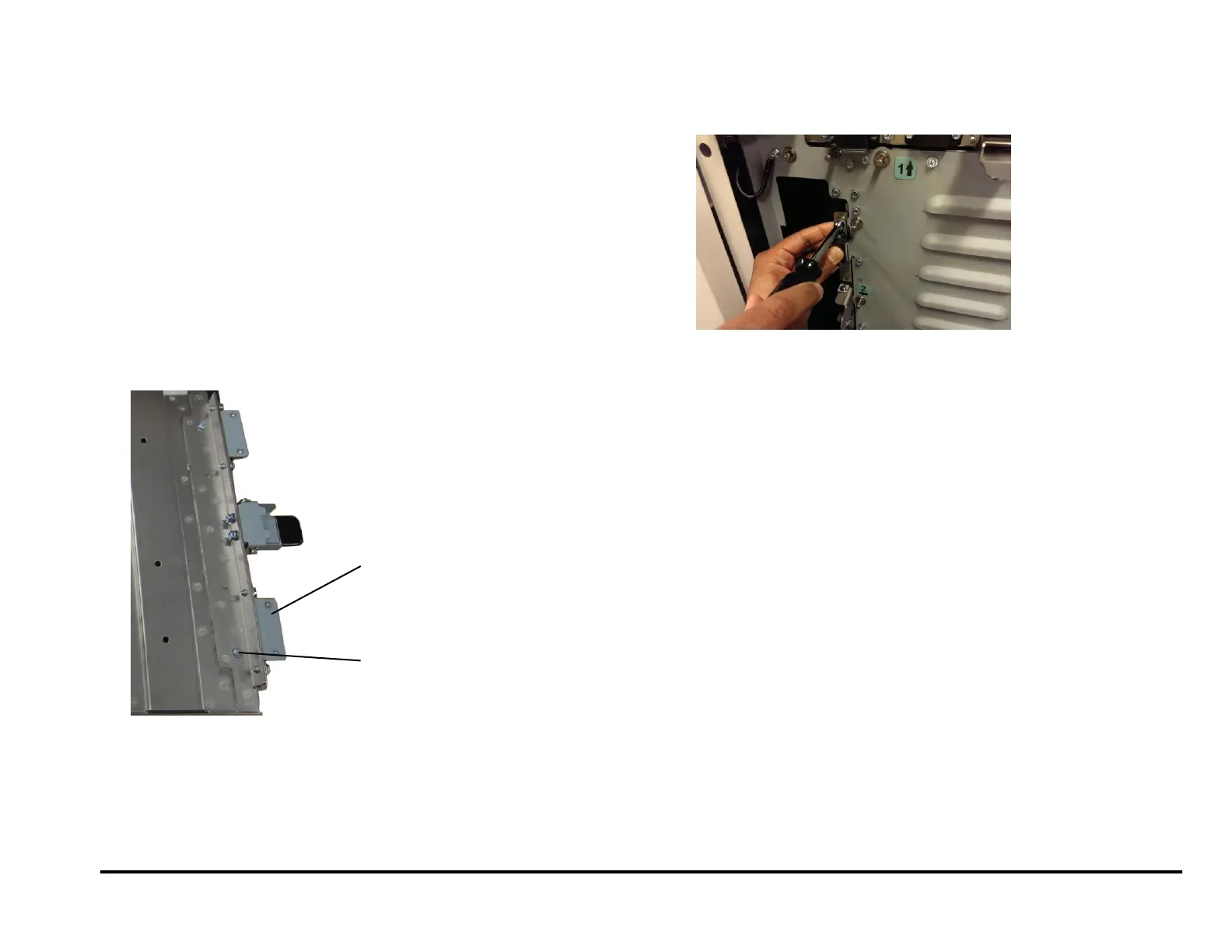

1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Remove the Screws (2) and Nuts (2).
4. Remove the Magnet Bracket.
5. Remove the old Magnet.
Installation Procedure
1. Place the Magnet Bracket in position and insert the Screws.
2. Do ADJ 1.7 Idler Panel Magnetic Latches Adjustment.
3. Connect the Power Cord.
4. Power ON the entire printing system.
Magnet Bracket
Screws (2)
