GBC AdvancedPunch Pro - 5.5. Punch Module- Steering Module - Drive Panel Steering

GBC AdvancedPunch Pro 09-11-2018 Parts List
5-25

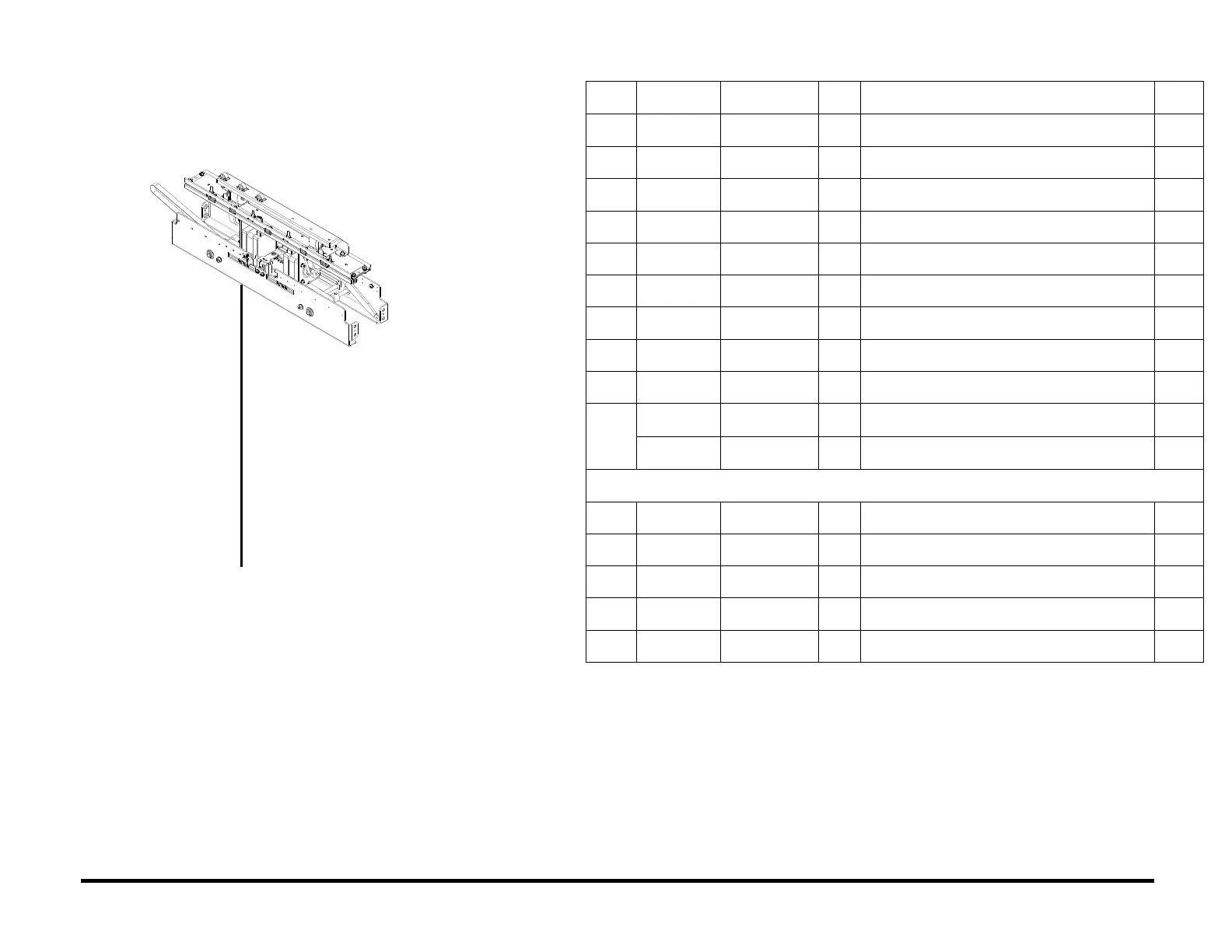

PL 5.5. Punch Module- Steering Module - Drive Panel Steering
ITEM
GBC Part
#
Xerox Part
#
DESCRIPTION
QTY
1
1822008
C
028N00376
C
WASHER, FLAT, 6.4X12X1.5
4
2
1822202
A
028N00369
A
E-RING, JE-5
4
3
1823901
B
026N00825
B
SCREW, PHILLIPS HX W/SEMS, M3X6
8
4
1824002
B
027N00263
B
NUT, KEPS, M3
4
5
7715039
022N02804
ROLLER ASSEMBLY, DRIVE, STEERING
2
6
7715047
023N01317
BELT,STEERING,65 GROOVES,2MM 2GT
2
7
7715053
002N03196
PANEL WELDMENT, DRIVE, STEERING
1
8
7715377
F
009N01700
F
SPRING, STEERING DRIVE ROLLER
2
9
7715648
E
072N00034
E
WIRE CLAMP, LOCKING
2
10
7715857
127N07847
M3
STEPPER MOTOR AND
PULLEY,STEERING, SERVICE
1
7715857
127N07847
M4
STEPPER MOTOR AND
PULLEY,STEERING, SERVICE
1
Parts identified above with superscripts are part of Hardware kits.
A
7715973
600N03432
KIT, HARDWARE, RINGS
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
C
7715975
600N03434
KIT, HARDWARE, WASHERS
E
7715977
600N03436
KIT, HARDWARE, WIRE CLAMPS
F
7715978
600N03437
KIT, HARDWARE, SPRINGS
