GBC AdvancedPunch Pro - RAP 2.8 Checking Obstruction in Paper Path; Rap 2.8

GBC AdvancedPunch Pro 11/07/2018 RAPS
2-28
RAP 2.8 Checking Obstruction in Paper Path
Use this RAP to checking for an obstruction in the paper path.
When inspecting for obstruction to paper path, look for any ripped pieces
of paper or any other objects like loose fasteners along the paper path. A

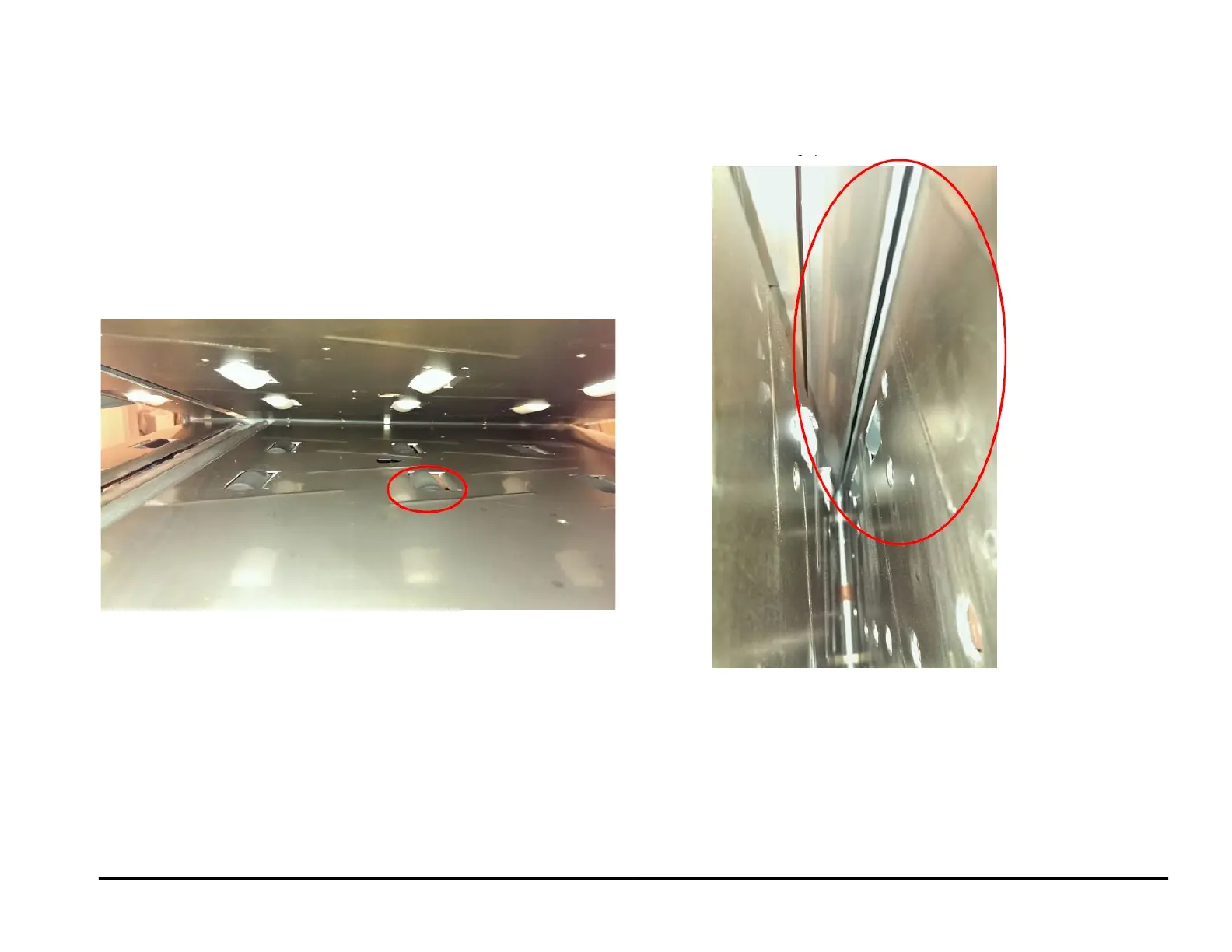

few key areas to inspect are shown below:
Area 1 (Entrance)
1. Open the Front Door.
2. Open the Bypass Panel.
3. Inspect the gap between the Drive Roller and the sheet metal panel
for any objects.
Area 2 (Entrance Idler Panel Assembly)
1. At the top of Area 2 (Entrance Idler Panel Assembly), check if there is
a 2 to 3mm gap for sheet flow.
2. If the Lower entrance panel (PL 3.1) is bent, replace it (REP 2.1)
