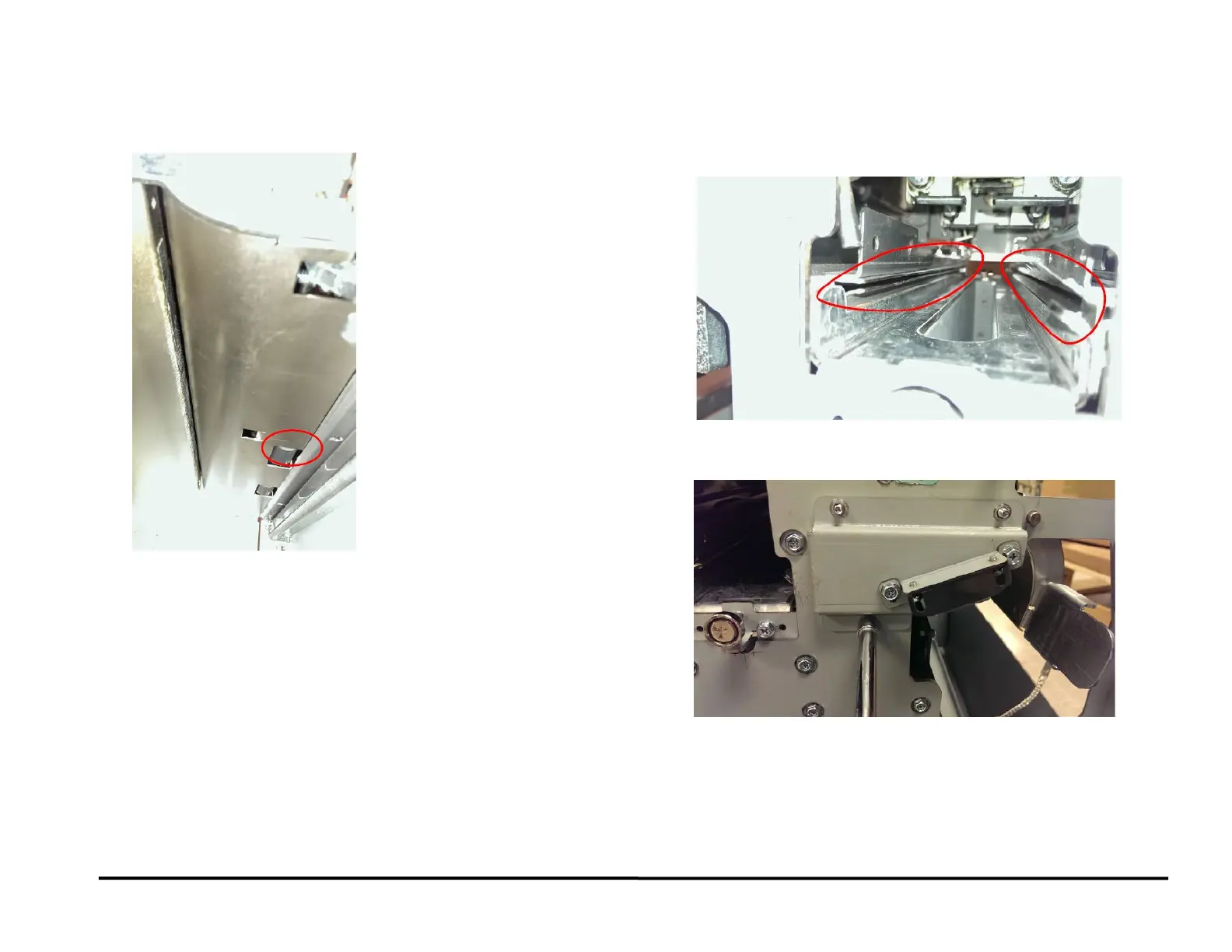

Area 3 (Acceleration Roller Idler)
1. Inspect for any object wedged between the roller and sheet metal
window.
Area 4 (Punch Module)
1. Remove the Die Set and inspect at the following locations.
2. Check the Guide Brackets immediately upstream and downstream of
the Die Set.
3. Remove the M4 Nuts (3) and the cover for Area 5.
4. Inspect the paper path for any obstructions closely.
(Cont.)
