GBC AdvancedPunch Pro 11/07/2018 RAPS
2-30

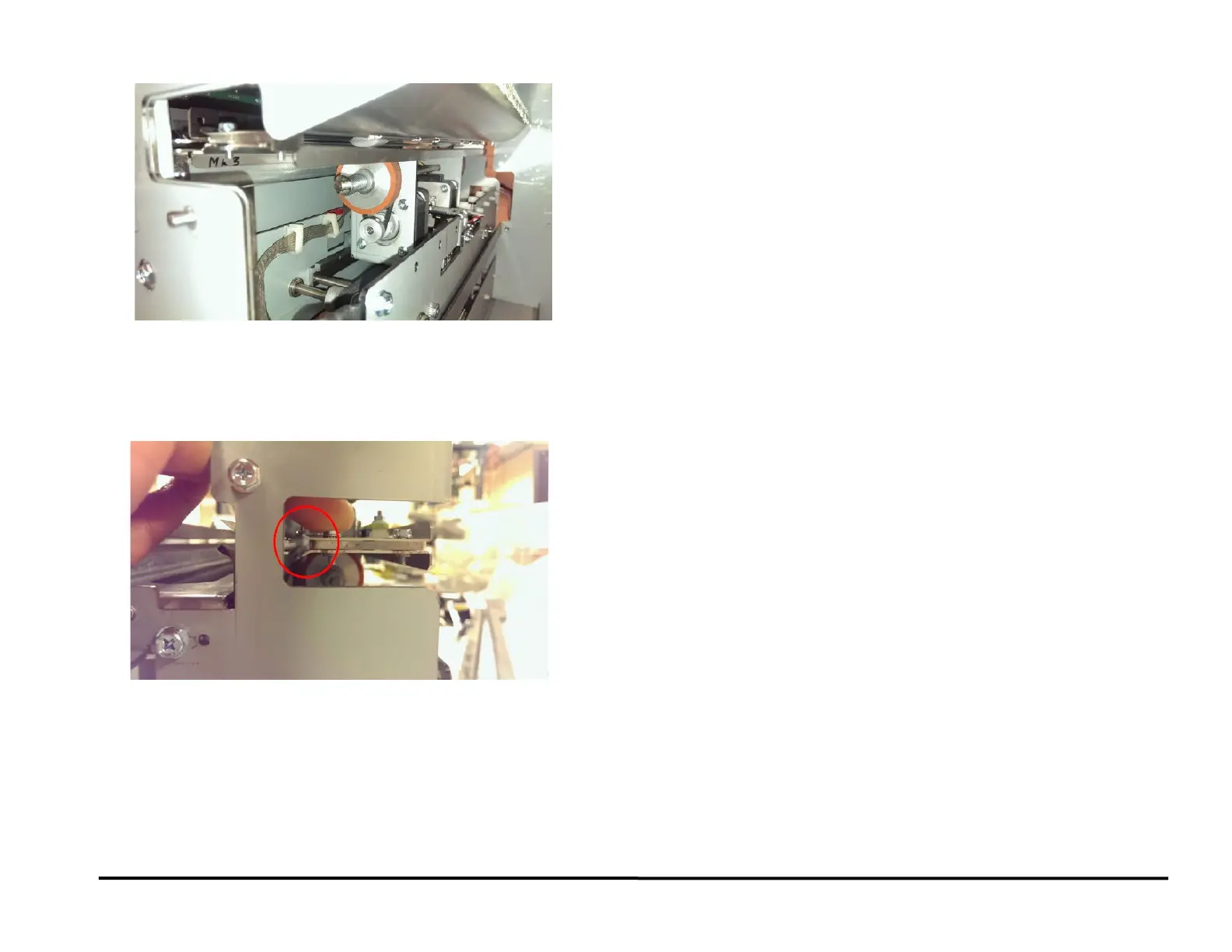

5. Check that the Drive panel and the Idler Panel of the Steering module
subassembly (PL 5.4 and PL 5.5) are centered to the guide brackets
as shown.
If one of the below panels is bent, replace
• Steering idler panel weldment- PL 5.4; REP 3.10
• Steering drive panel weldment- PL 5.5; REP 3.12
