GBC AdvancedPunch Pro - REP 3.7 Alignment Carriage Sub Assembly Replacement

Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-98
REP 3.7 Alignment Carriage Sub Assembly Replacement
PARTS LIST ON PL 5.3
Use this procedure to remove and install the Alignment Carriage Sub
Assembly.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1.1 to remove the Punch Module.

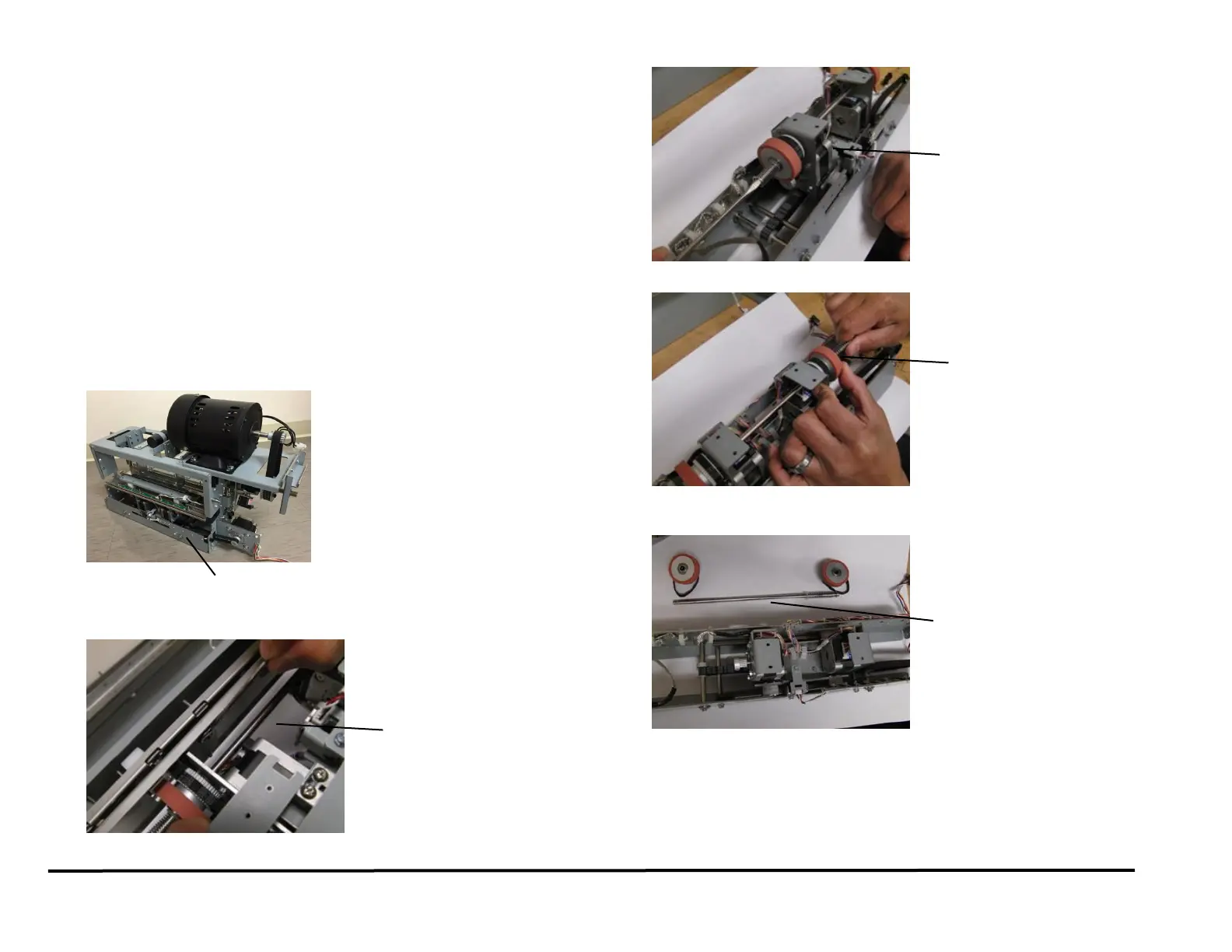

5. Remove the Steering Idler and Drive Panel assemblies by removing
the M3 Nuts (4)
6. Remove E-clip from steering drive roller shaft.
7. Remove the drive roller shaft and all the components on the drive
shaft. (4 plastic washers; 2 springs; 2 drive rollers; 2 belts; 2 e-clips)
Steering Idler
Drive Roller Shaft
Steering Module
Drive Panel
E-Ring
