GBC AdvancedPunch Pro - REP 2.21.2 134 T Belt Replacement; REP 2.21.3 150 T Belt Replacement

Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-56
REP 2.21.2 134T Belt Replacement
PARTS LIST ON PL 3.9
Use this procedure to remove and install the 134T Belt for Motor M1, M6
and M7.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.

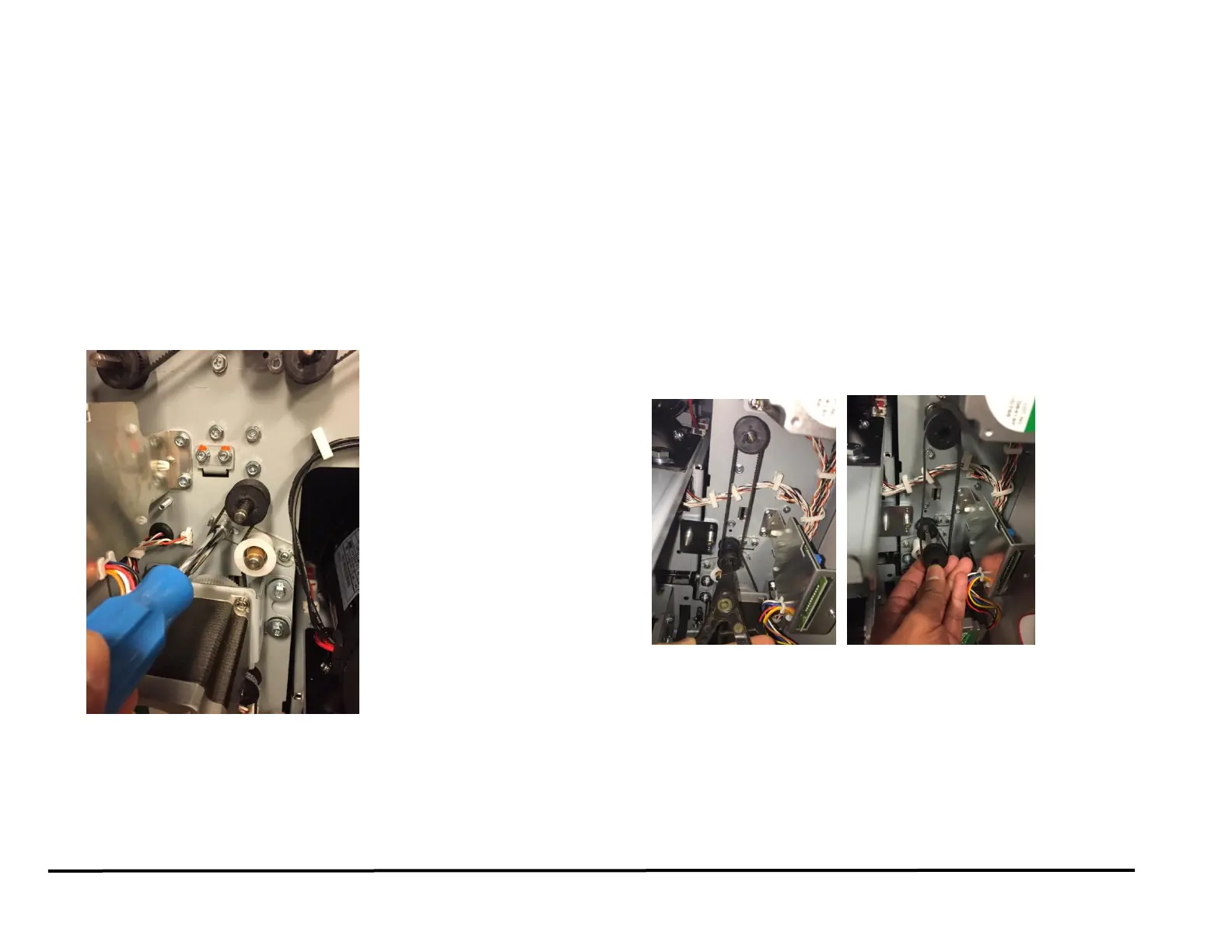

4. Loosen the Tensioner and remove the old Belt.
5. Place the new Belt in position around the Pulleys.
6. Adjust the Belt Tension, ADJ 1.4.3
7. Do REP 1.6 to install the Rear Cover.
8. Connect the Power Cord.
9. Power ON the entire printing system.
REP 2.21.3 150T Belt Replacement
PARTS LIST ON PL 3.9
Use this procedure to remove and install the 150T Belt connecting rollers
N1 and N2, N2 and N3, N8 and N9.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 2.20 to remove both of the Pulleys Connected to the Belt that
is being replaced.
5. Place the Belt in position between the Pulleys and slide the Pulleys
on to the Shafts.
6. Install the retaining rings
7. Do REP 1.6 to install the Rear Cover.
8. Connect the Power Cord.
9. Power ON the entire printing system.
