GBC AdvancedPunch Pro - 4.5. Paper Path- Upper Bypass Panel

Parts List 09-11-2018 GBC AdvancedPunch Pro
5-18

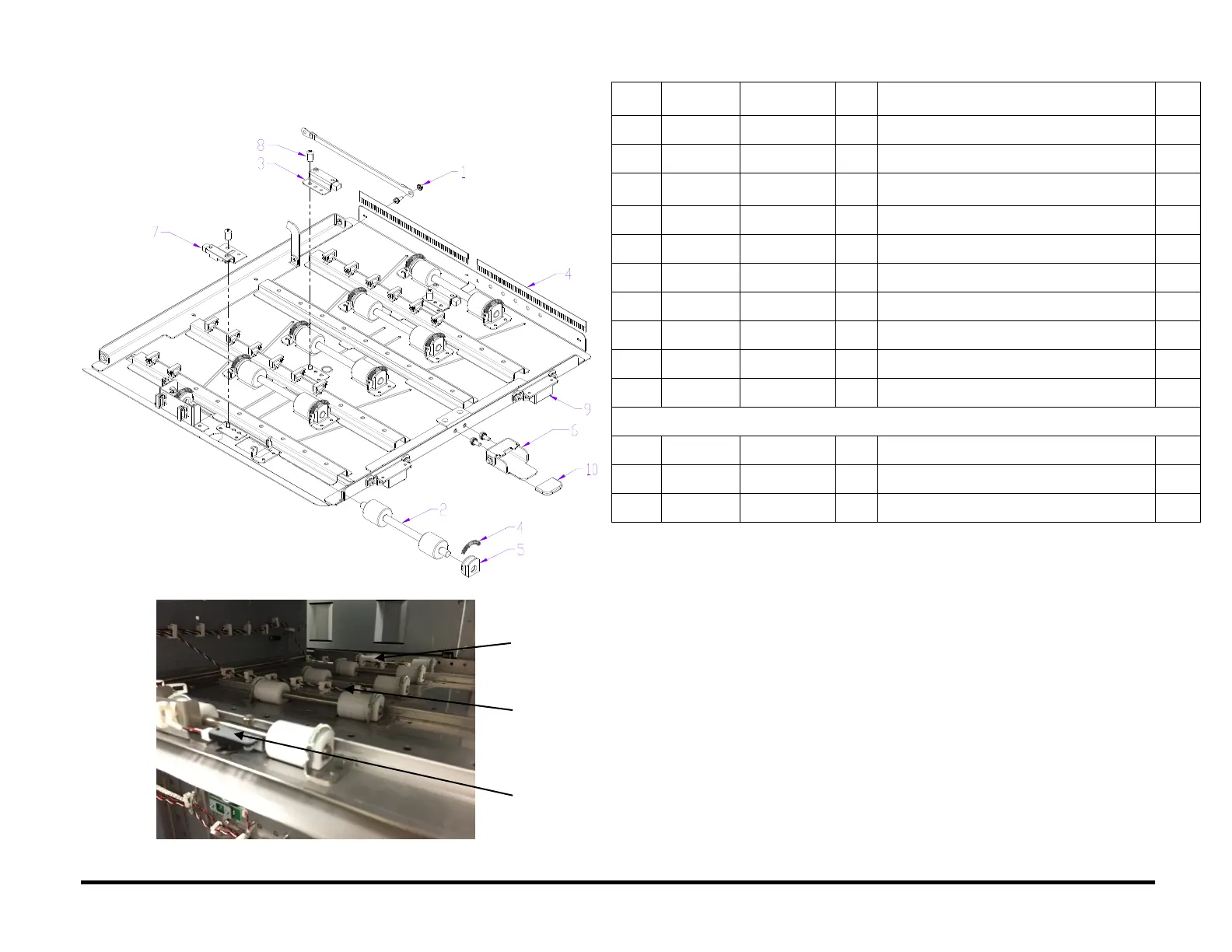

PL 4.5. Paper Path- Upper Bypass Panel
ITEM
GBC
Part #
Xerox Part
#
DESCRIPTION
QTY
1
1824002
B
027N00263
B
NUT, KEPS, M3
1
2
7715103
022N02806
ROLLER ASSY, IDLER
5
3
7715291
130N01762
S25
S26
SENSOR AND BRACKET ASSEMBLY
2
4
7715380
F
009N01702
F
SPRING, TRANSPORT IDLER ROLLER
10
5
7715382
013N13947
BEARING HOUSING ASSY
10
6
7715384
003N01111
HANDLE ASSY, IDLER PANELS
1
7
7715627
130N01763
S1
SENSOR AND BRACKET ASSY,S1
1
8
7715629
B
026N00813
B
SCREW, BARREL, M4, 7MM DEEP
3
9
7715852
002N03193
PANEL WELDMENT, BYPASS, UPPER
1
10
7708163
021N02267
CAP, RUBBER
1
Parts identified above with superscripts are part of Hardware kits.
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
C
7715975
600N03434
KIT, HARDWARE, WASHERS
F
7715978
600N03437
KIT, HARDWARE, SPRINGS
S26
S1
S25
