GP 6.20 Punch Drive Cam Lubrication
Do the following to lubricate the Punch Drive Cam.
Maintenance Schedule
Lubricate every 5000K cycles with Teflon grease.
Procedure
1. Do REP 1.6 Rear Cover Replacement to remove the Rear Cover.
2. Do REP 3.1 Punch Module Replacement to remove the Punch
Module.

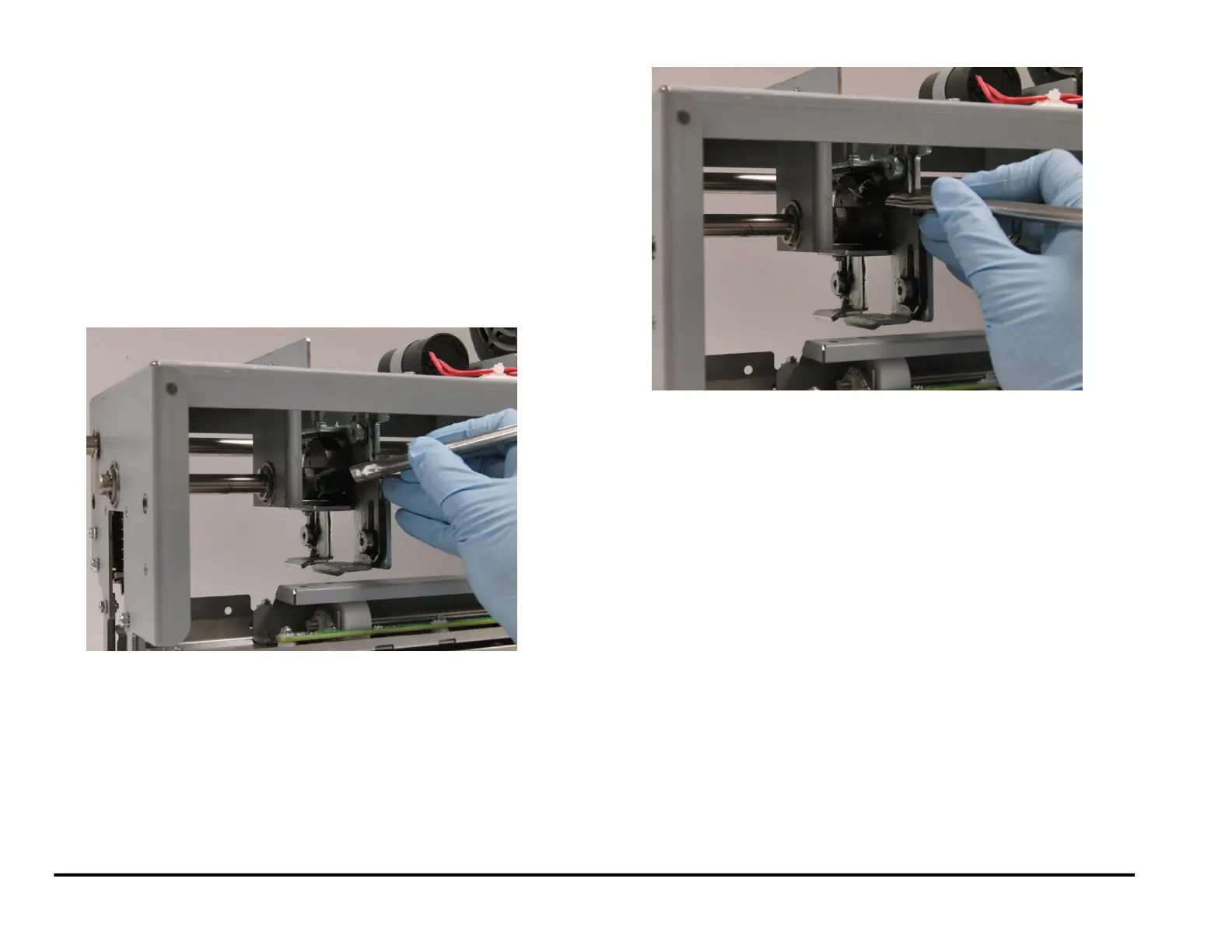

3. Clean the old grease from the cams and then apply a light coat of
high quality grease (not oil).
4. Do REP 3.1 Punch Module Replacement to install the Punch Module.
5. Do REP 1.6 Rear Cover Replacement to install the Rear Cover.
