GBC AdvancedPunch Pro Service Manual

GBC AdvancedPunch Pro 11/07/2018 RAPS
2-6
Check Die
The CHECK DIE message indicates that the Die Set is either missing or
not fully installed.
1. Open the Front Door. (PL 2.2).
2. Unlock the Dieset, and remove the Dieset (see AdvancedPunch Pro
User Manual).
3. Re-insert the Dieset and lock the lock it in place.
This clears the fault code.
Y N
Go to step 4.
Normal operation.
4. Do REP 1.6 to remove the Rear Cover, and check if the Dieset
Recognition Reader Board Cable- 023N01331 (see Section 7 Wiring)
is connected properly at both ends (Die set recognition board and J9
in Section 7 wiring). Note that the connector has 4 pins, and it should
be properly inserted.
This clears the fault code.
Y N
Go to step 5.
Normal operation.
5. Clean the Dieset Recognition Board in the Die and the Die set
Recognition Reader Board in the machine.
This clears the fault code.
Y N
Go to step 6.
Normal operation.

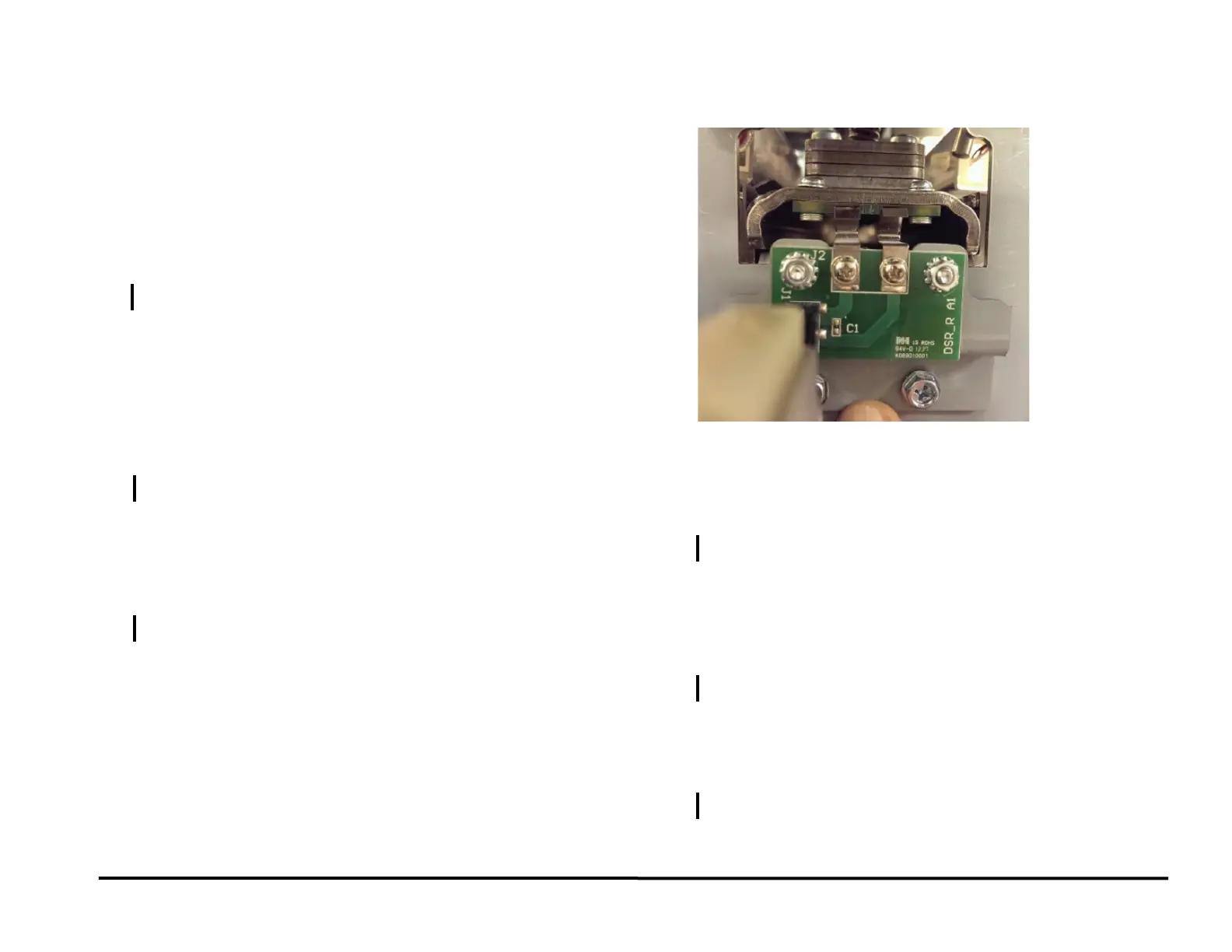

6. Check if the Dieset Recognition Reader Board Spring Clips contact
the Dieset Recognition Board in the Dieset.
If Spring Clips look like they are broken, replace Dieset Recognition
Reader Board. If the springs clips do not contact the Dieset
Recognition Board, do ADJ 1.6 Dieset Recognition Board Adjustment.
This clears the fault code.
Y N
Go to step 7.
Normal operation.
7. If there is another Dieset, check if that Dieset shows the same
message.
Dieset shows the same message.
Y N
If the issue is with just one Dieset, then escalate to second level.
If the error is still present with all the diesets, do GP 6.2.16
FIRMWARE UPGRADE Procedure to reflash the firmware.
This clears the fault code.
Y N
Go to step 8.
Normal operation.
(Cont.)
