GBC AdvancedPunch Pro Service Manual

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-91
REP 3.4 Clutch or Clutch Pulley Replacement
PARTS LIST ON PL 5.6
Use this procedure to remove and install the Clutch or the Clutch Pulley in
the Punch Module.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1.1 Punch Module Removal.
5. Remove the E-Ring, nylon washer and ball bearing.
6. Remove the Screws (2) and the Bearing Bracket.
7. Remove the Timing belt.

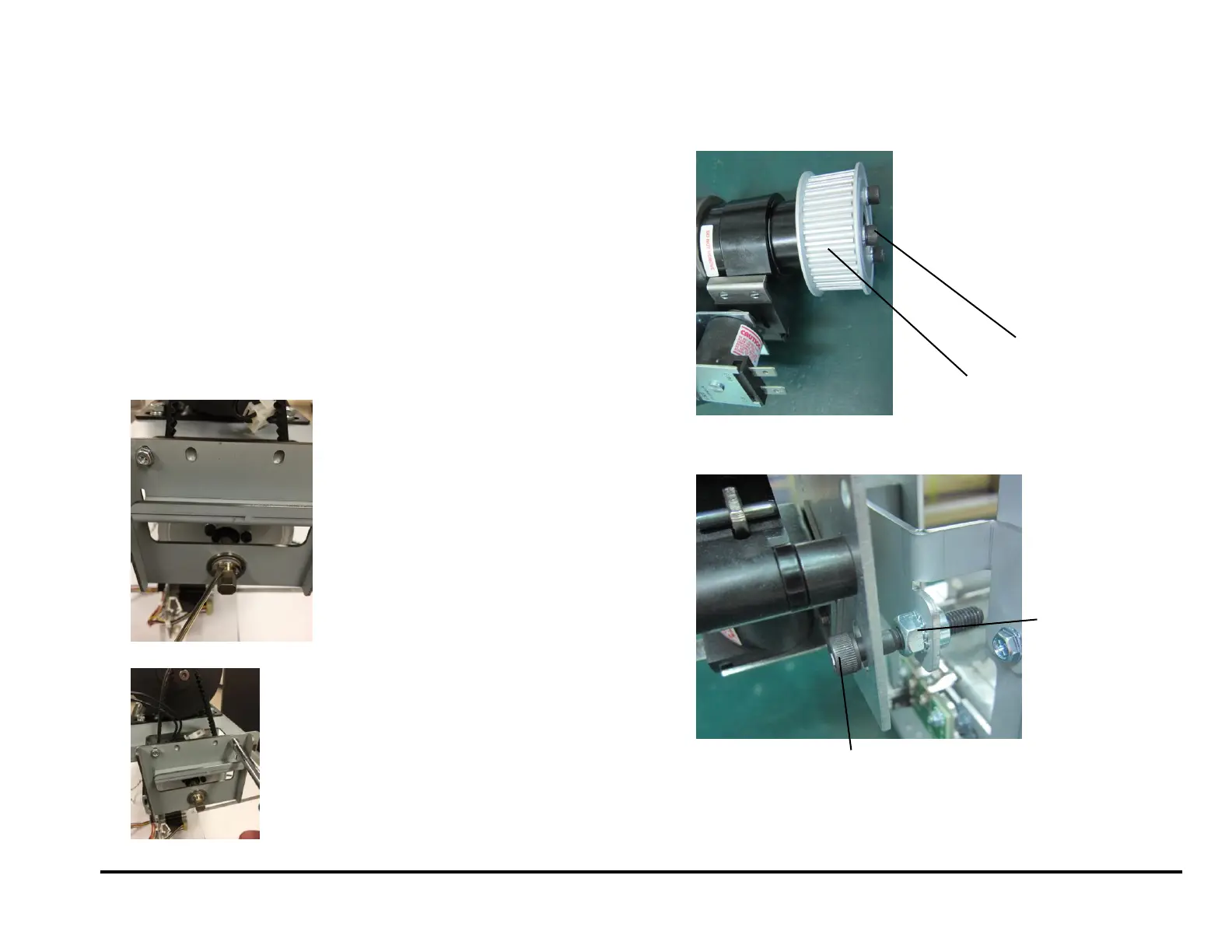

8. To remove the Clutch Pulley
 Remove the M5X18 Screws (3) and Split Lock Washer (3)
 Remove the Pulley and Flange.
9. Remove the Lock Nut and the long M6 Screw.
(Cont.)
Screws
Pulley and Flange
Lock Nut (2)
Screw
