Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-70
REP 2.25.6 Skew Sensor Board (S6 – S10) Replacement
PARTS LIST ON PL 5.4
Use this procedure to remove and install the Skew Sensor Board (S6, S7,
S8, S9, S10).
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1 to remove the Punch Module.
5. Disconnect the Skew Sensor Board Connector.
6. Remove the Nuts (4), Washers (4), and the Skew Sensor Board. (do
not remove the washers under the sensor board)
7. Place the new Skew Sensor Board in position.
8. Install the Washers (4) and tighten the Nuts (4). (Make sure there are
(4) washers below the sensor board).
9. Connect the Sensor Board Connector.
10. Do REP 3.1 to install the Punch Module.
11. Do REP 1.6 to install the Rear Cover.
12. Connect the Power Cord.
13. Power ON the entire printing system.

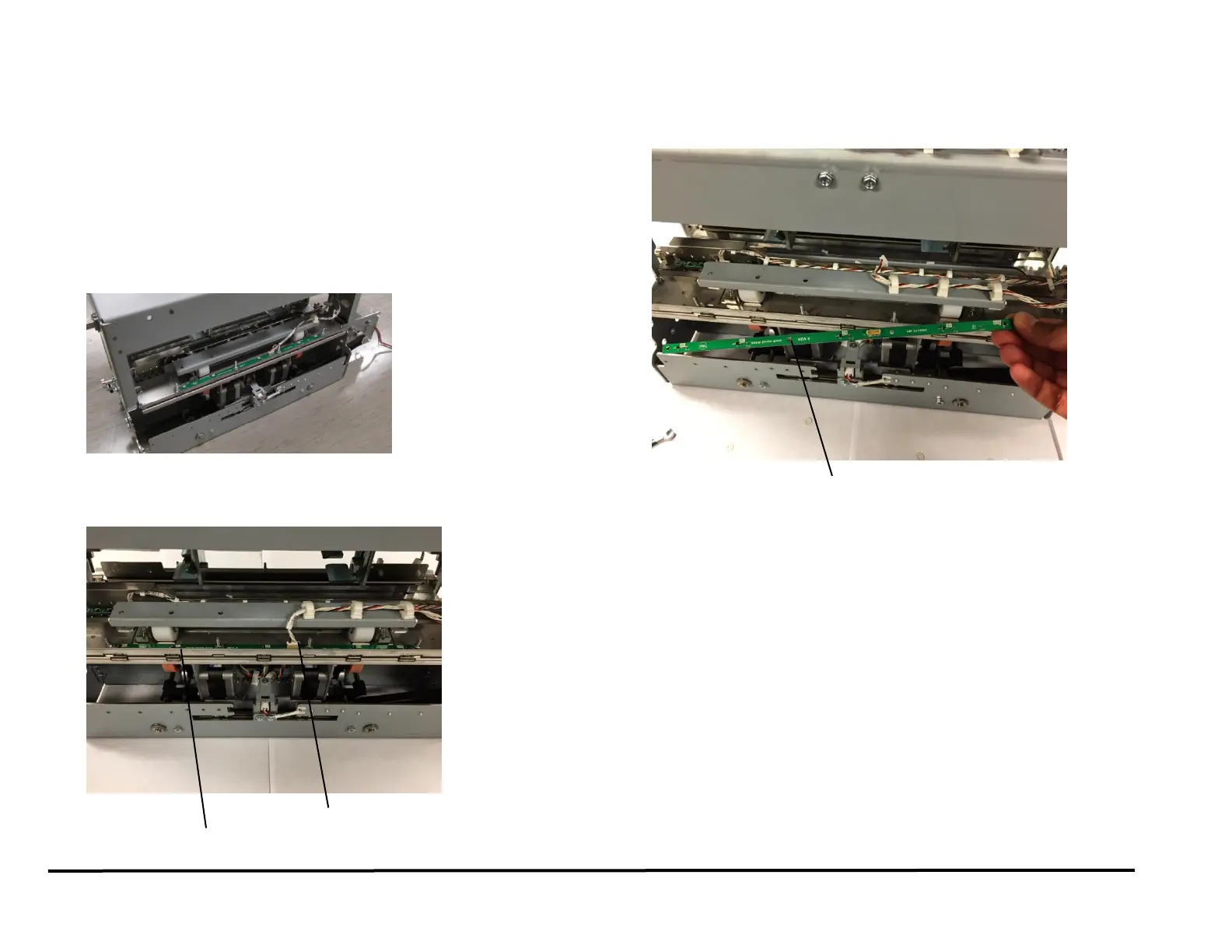

Skew Sensor Board Connector
