GBC AdvancedPunch Pro Service Manual

Parts List 09-11-2018 GBC AdvancedPunch Pro
5-8

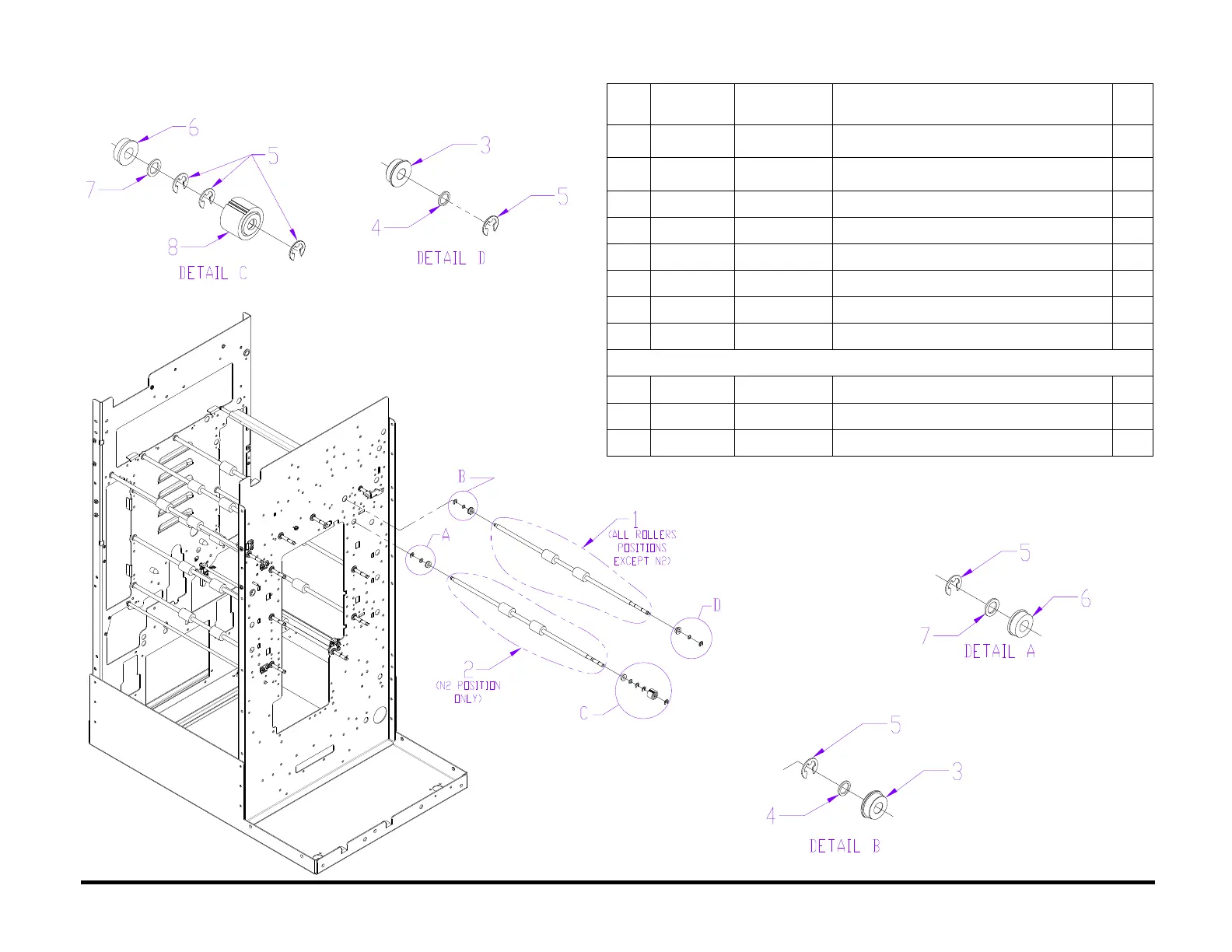

PL 3.4. Frame Assembly- Drive Rollers
ITEM
GBC Part
#
Xerox Part
#
DESCRIPTION
QT
Y
1
7715093
022N02805
ROLLER ASSY, DRIVE
(USED FOR ALL ROLLERS EXCEPT N2)
11
2
7715097
002N02808
ROLLER ASSY, ONE WAY DRIVE
(USED IN N2 POSITION ONLY)
1
3
1821116
D
013N13948
D
BEARING,BALL,FLANGE 6X13X5, SUJ2
22
4
1822005
C
028N00375
C
WASHER, FLAT, 6.025 X 8 X 0.75
22
5
1822202
A
028N00369
A
E-RING, JE-5
26
6
7706532
013N13946
BEARING BALL FLANGE
2
7
1925222
C
028N00372
C
WASHER FLAT, 1/4X3/8X/1/32
2
8
7715862
005N01168
ONE WAY CLUTCH SUB ASSEMBLY
1
Parts identified above with superscripts are part of Hardware kits.
A
7715973
600N03432
KIT, HARDWARE, RINGS
C
7715975
600N03434
KIT, HARDWARE, WASHERS
D
7715976
600N03435
KIT, HARDWARE, BEARINGS
