Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-122
REP 5.3 Dieset Recognition Reader Board Replacement
PARTS LIST ON PL 5.1 (page 2)
Use this procedure to remove and install the Dieset Recognition Reader
Board
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.

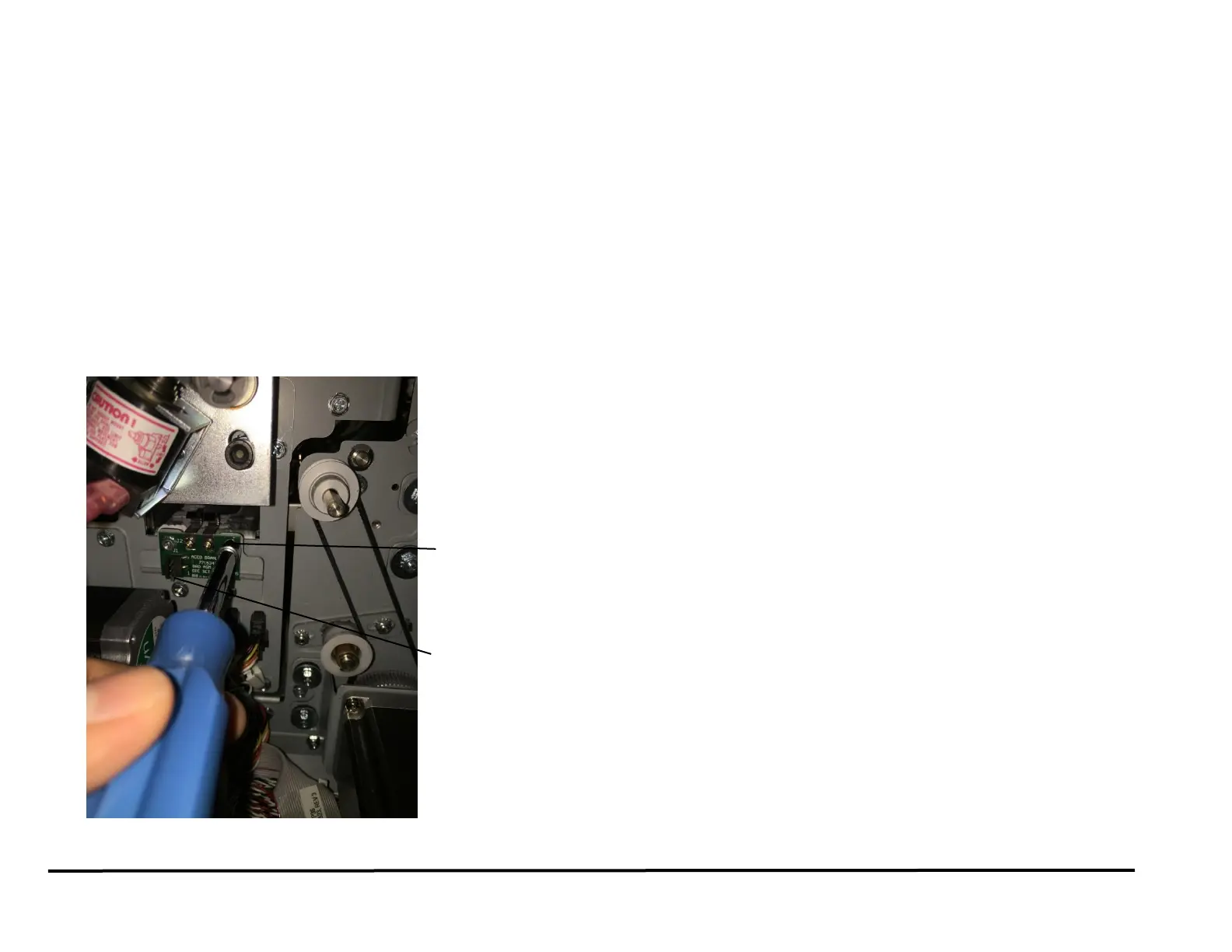

4. Disconnect the Connector at the Dieset Recognition Reader Board.
5. Remove the M3 nuts (2) and the Dieset Recognition Reader Board.
Installation Procedure
1. Place the Dieset Recognition Reader Board in position and tighten
the nuts (2).
2. Connect the Connector to the Dieset Recognition Reader Board.
3. Do ADJ 1.6 Dieset Recognition Board Adjustment to set the Dieset
Recognition Reader Board.
4. Do REP 1.6 to install the Rear Cover.
5. Connect the Power Cord.
6. Power ON the entire printing system.
To Next Page
