GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-59
11. Remove the Bearing from the front of the machine.
12. Remove the Bearing from the rear of the machine.
Installation Procedure
1. Place the Drive Roller in position
2. Place the Bearing in position at the front of the machine.
3. Place the Bearing in position at the rear of the machine.
4. Place the Washer and the E-Ring in position the end of the Drive
Roller Shaft at the front of the machine.
5. Place the Washer and the E-Ring in position the end of the Drive
Roller Shaft at the rear of the machine.
6. Do REP 2.20 to install the Pulley on the appropriate Drive Roller
Shaft.
7. Do REP 2.21 to install the Belt on the appropriate Drive Roller.
8. Adjust the Belt Tension, ADJ 1.4
9. For all Drive Rollers (except N1 and N11), do REP 3.1 to install the
Punch Module.
10. Do REP 1.6 to install the Rear Cover.
11. Close the Front Door.
12. Connect the Power Cord.
13. Power ON the entire printing system.

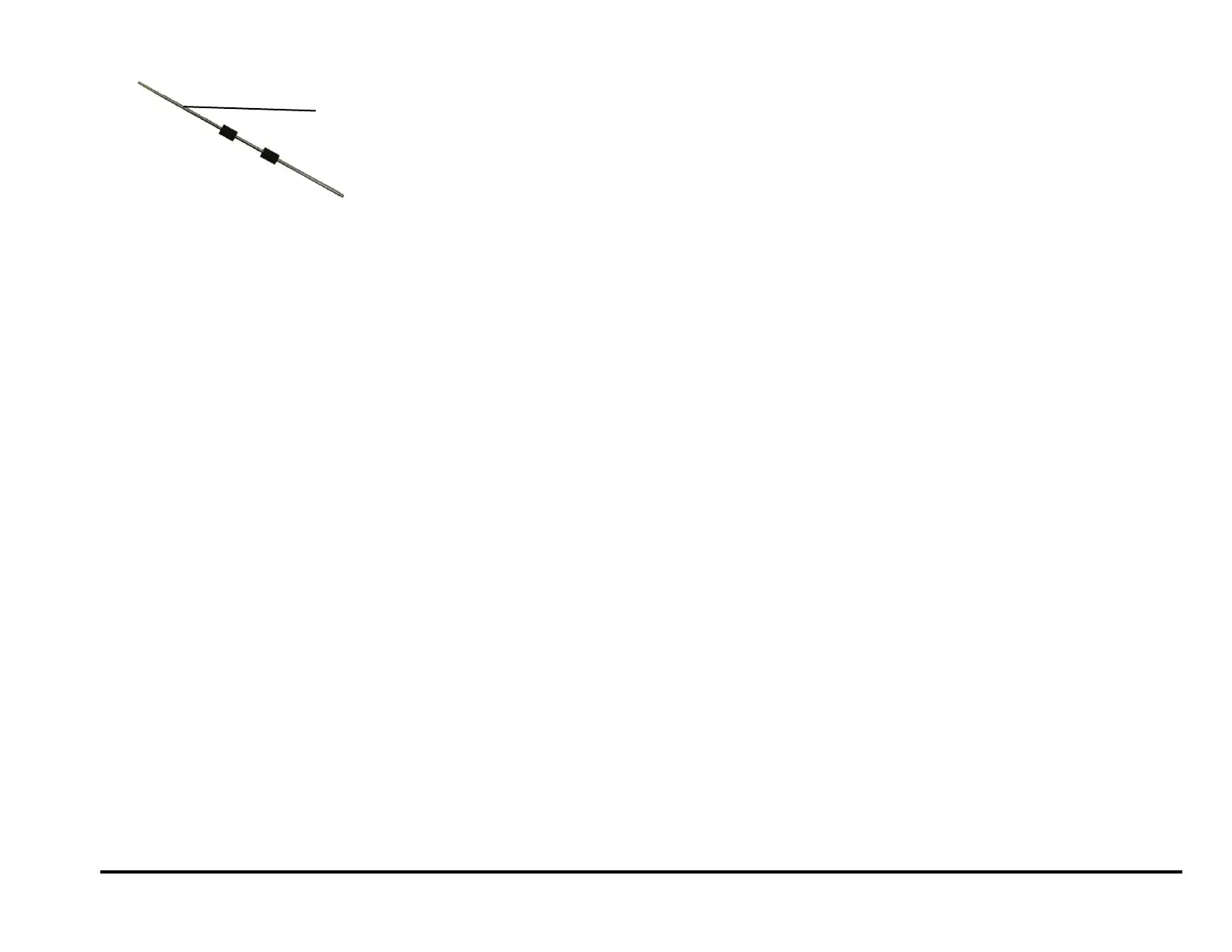

Drive Roller
