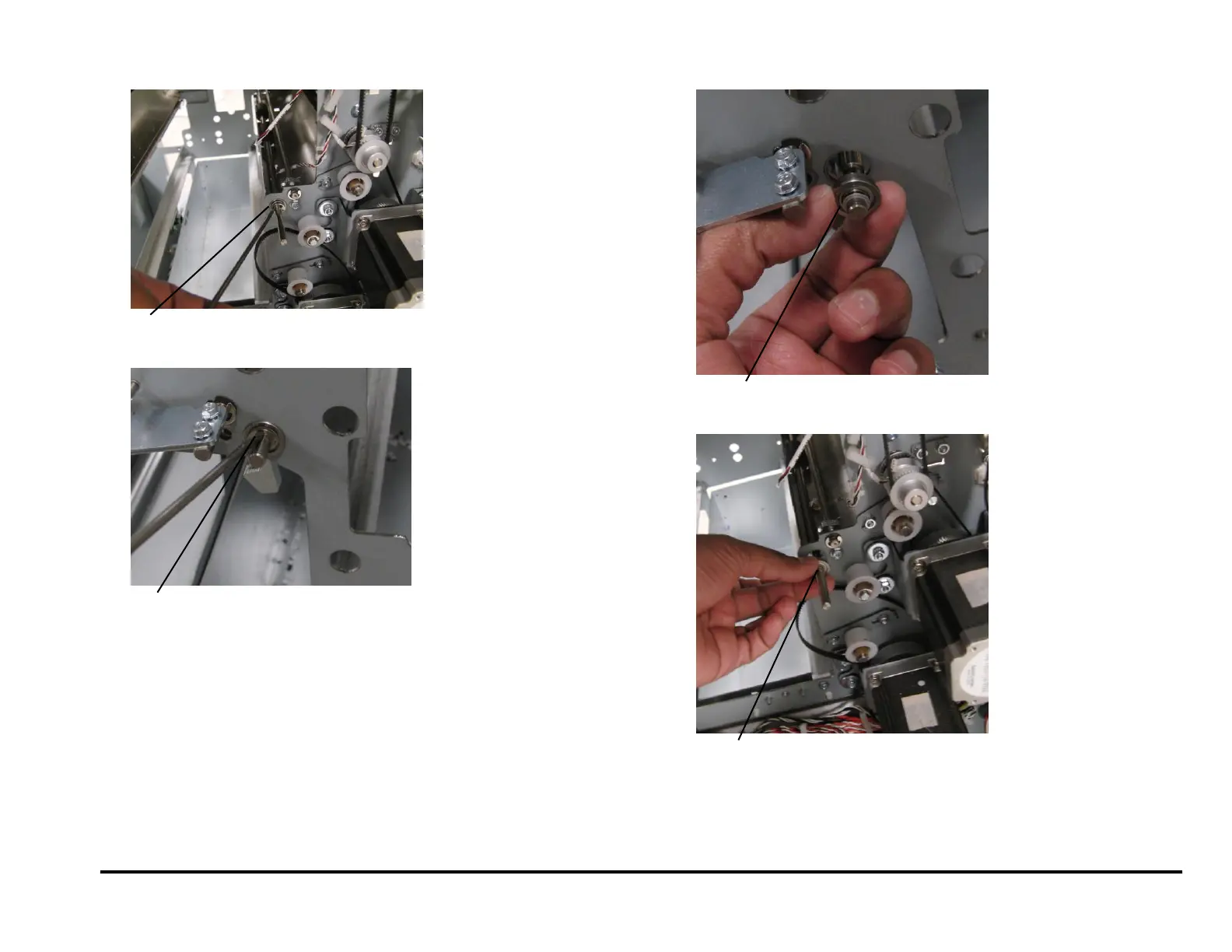

9. Remove the E-Ring and the Washer from the rear side of the Shaft.
10. Remove the E-Ring at the front side of the Shaft.
11. Remove the Washer and Ball Bearing from the front side.
12. Remove the Ball Bearing from the rear side of the Shaft.
(Cont.)
E-Ring and Washer
E-Ring
Washer and Ball Bearing
Ball Bearing
