Xerox Phaser 6360 Service Manual

2-10 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Theory of Operation
The Dispense Count is implemented over the next eight prints. For example, if
the Dispense Count is 16, two dispense counts are added during each of the
next eight prints. This is in addition to any counts added or subtracted during
each print as a result of PCDC.
If the CTD (ADC) Sensor indicates that toner density is too high and that 16
Dispense Counts are required to return toner density to normal, the
adjustment is accomplished by subtracting two counts from the calculated
PCDC count over each of the next eight prints. If the excess amount cannot
be subtracted in 8 print cycles, it is subtracted in the ninth and subsequent

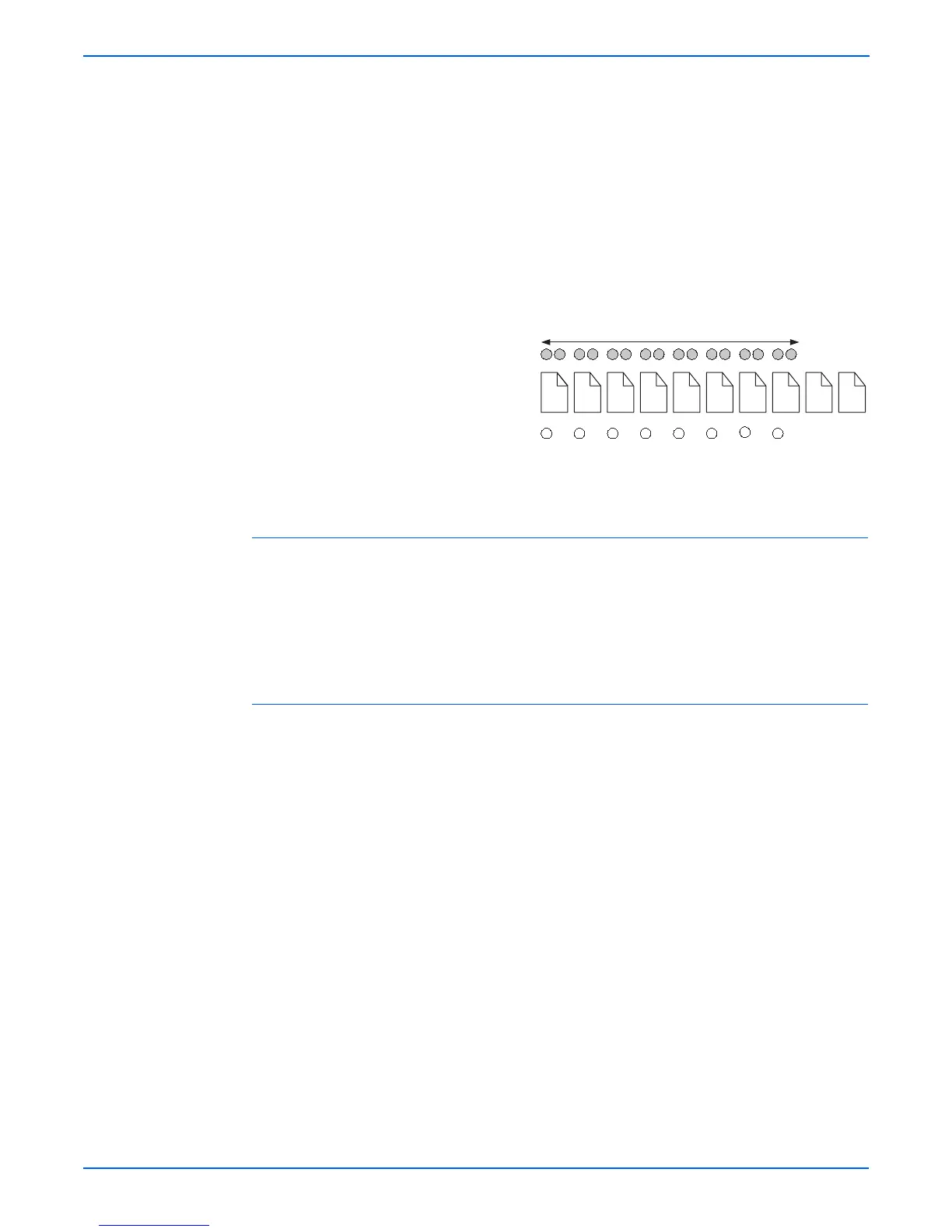

prints. The following figure illustrates this process.
High Area Coverage Mode
The High Area Coverage mode delays page feeding giving the printer
additional time to dispense toner. This mode compensates for images whose
toner density exceeds the printer’s toner dispense capabilities. This typically
occurs during continuous runs of images that drop the toner density for any
color Developer below the reference value.
Admix Mode
If High Area Coverage mode fails to compensate for the reduction in
Developer toner density, or if the printer is moved to an environment with a
different humidity level changing the reference value, Admix mode dispenses
toner immediately to restore toner density levels if needed.
Total Dispense Counts
Correction Amount By ADC +16
Dispense Counts By PCDC
Correction Amount By ADC -8
Total Dispense Counts
2 3 1 2 0 0 1 2 3 2
Even Allotment In First 8 Prints
4534223432
1201000022
s6360-067

Xerox Phaser 6360 Specifications

General

Depth (max)	698 mm
Depth (min)	580 mm
Height (max)	854 mm
Height (min)	513 mm
Maximum width	572 mm
Package length	933.449 mm
Storage temperature (T-T)	32 - 95 °F
Power consumption (active)	750 W
Non-operating relative humidity (non-condensing)	15 - 85 %
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	105 W
Power consumption (PowerSave)	22 W
Multi-Purpose tray	Yes
Total input capacity	1800 sheets
Total output capacity	250 sheets
Maximum input capacity	2350 sheets
Multi-Purpose tray input capacity	150 sheets
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	40 ppm
Maximum internal memory	1024 MB
Sound power level (standby)	34.4 dB
Operating temperature (T-T)	50 - 90 °F
Maximum duty cycle	100000 pages per month
Number of print cartridges	-
Page description languages	PCL 5c, PostScript 3
Package width	609.599 mm
Package height	1498.599 mm
Package weight	83462.4 g
Custom media width	89 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	140 - 914 mm
Paper tray media types	Envelopes, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	802.1x RADIUS
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Certification	CE, EMC 89/336/EEC, FCC, Low Voltage 73/23/EEC, RoHS, 2002/95/EC
Product color	Blue, White
Sustainability certificates	ENERGY STAR
