2-24 Phaser 6300/6350/6360 Color Laser Printer Service Manual
Theory of Operation

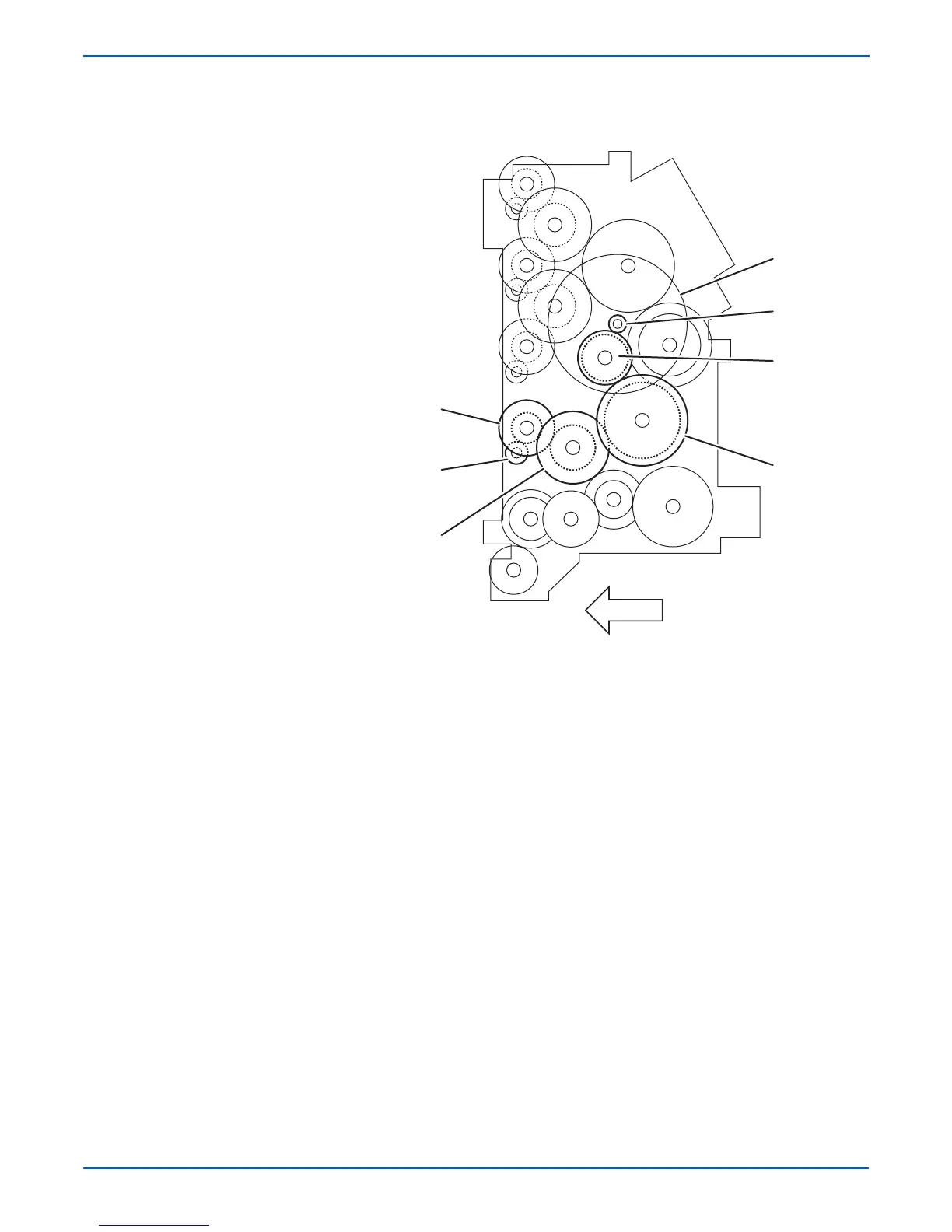

The following figure shows the relative positions of the gears being driven
during monochrome printing.
s6360-052
Developer
Drive Motor
Drive Motor
Gear
Gear D2-In
Gear D5
Gear D7
Gear D8
Gear Developer
Input (K)
Front
