8-110 Phaser 7400 Color Printer Service Manual

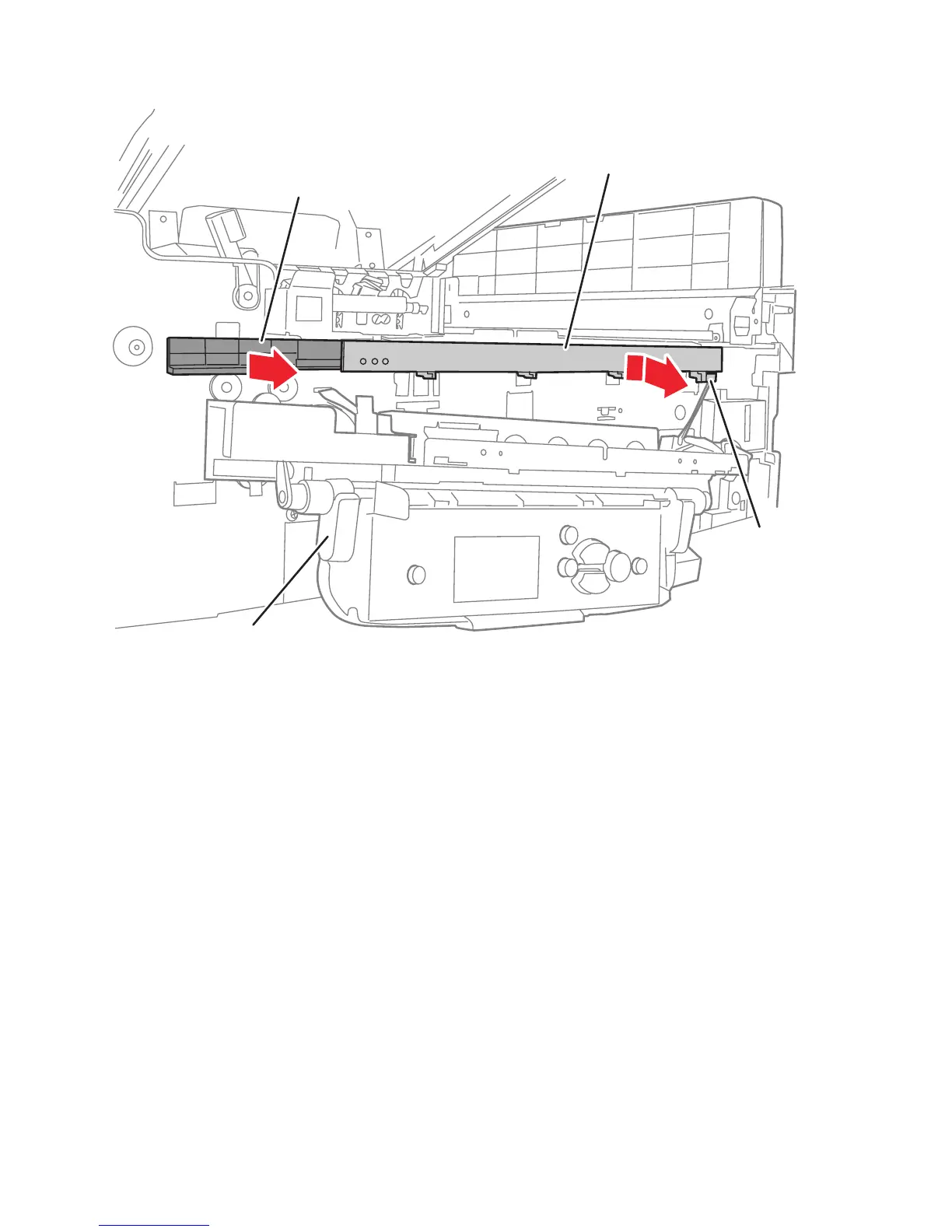

8. Release the hook and 4 tabs that secure the Lift Uplink Cover to the frame, and
then remove the cover.
9. Move the Lift Uplink to the right to clear the gear set, and then remove the Lift
Uplink.
Front Lift Up Link
Front Lift Up Link Cover
Control Panel Bracket
Hook
s7400-658
