8-128 Phaser 7400 Color Printer Service Manual
8. Remove 1 (metal, 6 mm) screw that secures the right side Control Panel hinge.
9. Remove 1 (black, 8 mm) screw that secures the switch holder.
10. Remove 2 (metal, 6 mm) screws that secure the Control Panel mounting.
11. Remove the switch by pulling the Control Panel mount away from the frame, and
then shift the switch holder first to the right, then down.
12. Feed the wiring through to the front to remove the switch.

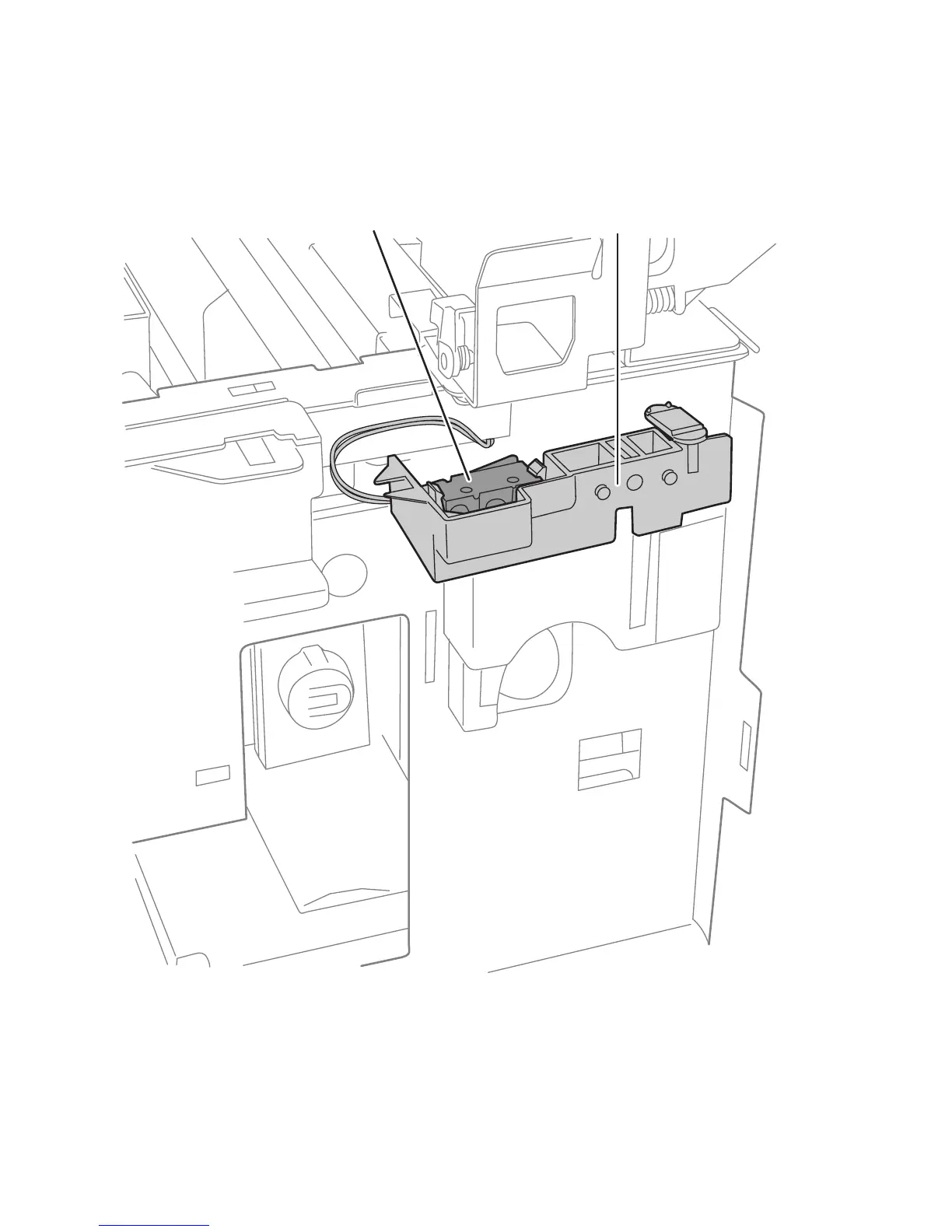

s7400-513
Top Cover Interlock Switch
Top Cover Interlock Switch Cover
