Service Parts Disassembly 8-137

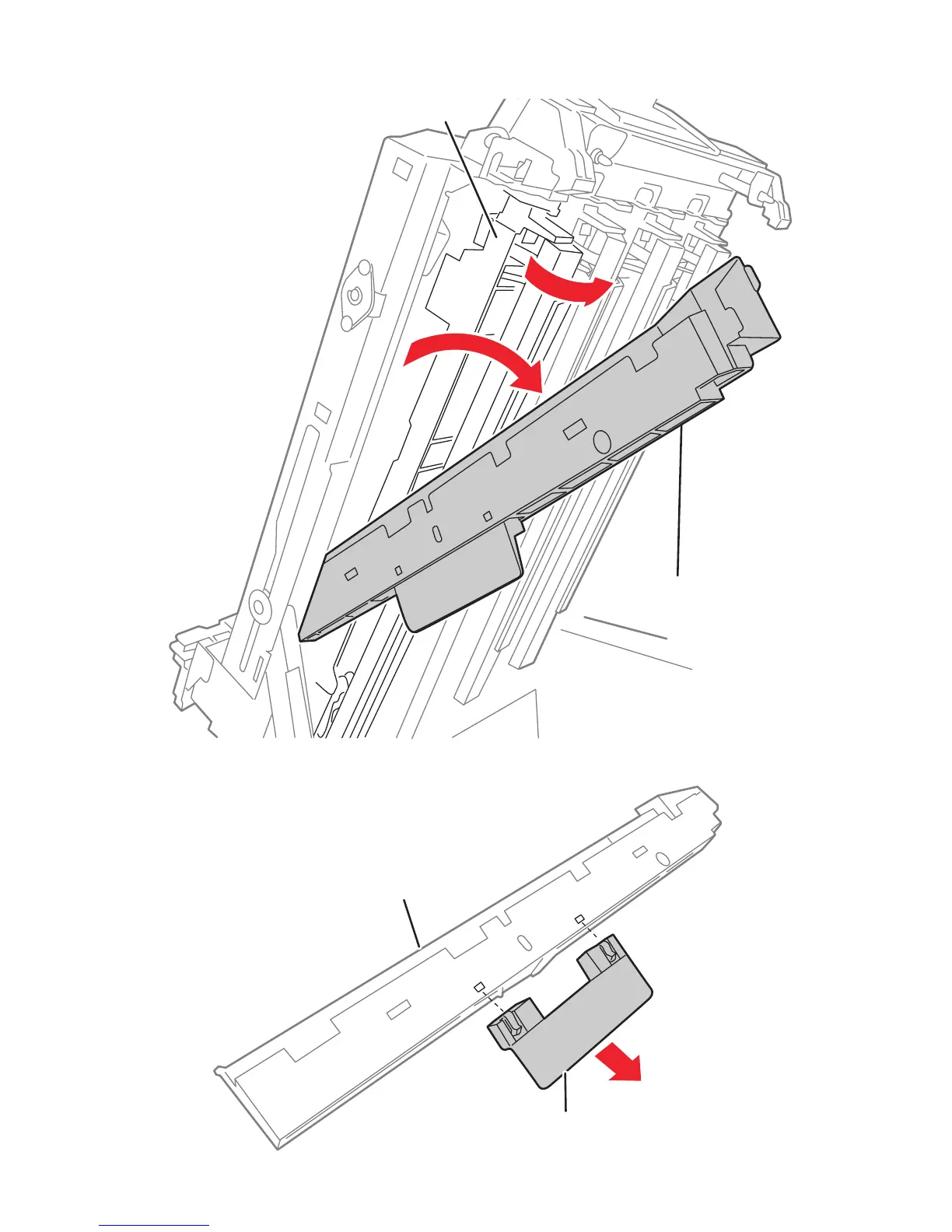

7. Move the Cyan LED Holder to the right to allow sufficient clearance to remove
the duct from the LED Assembly.
8. Release 2 hooks that secure the diffuser to the duct.
Cyan LED Holder
Top Cover Fan Assembly
s7400-452
s7400-451
Diffuser
Top Cover Fan Assembly
