Xerox Phaser 7400 Service Manual

9-8 Phaser 7400 Color Printer Service Manual

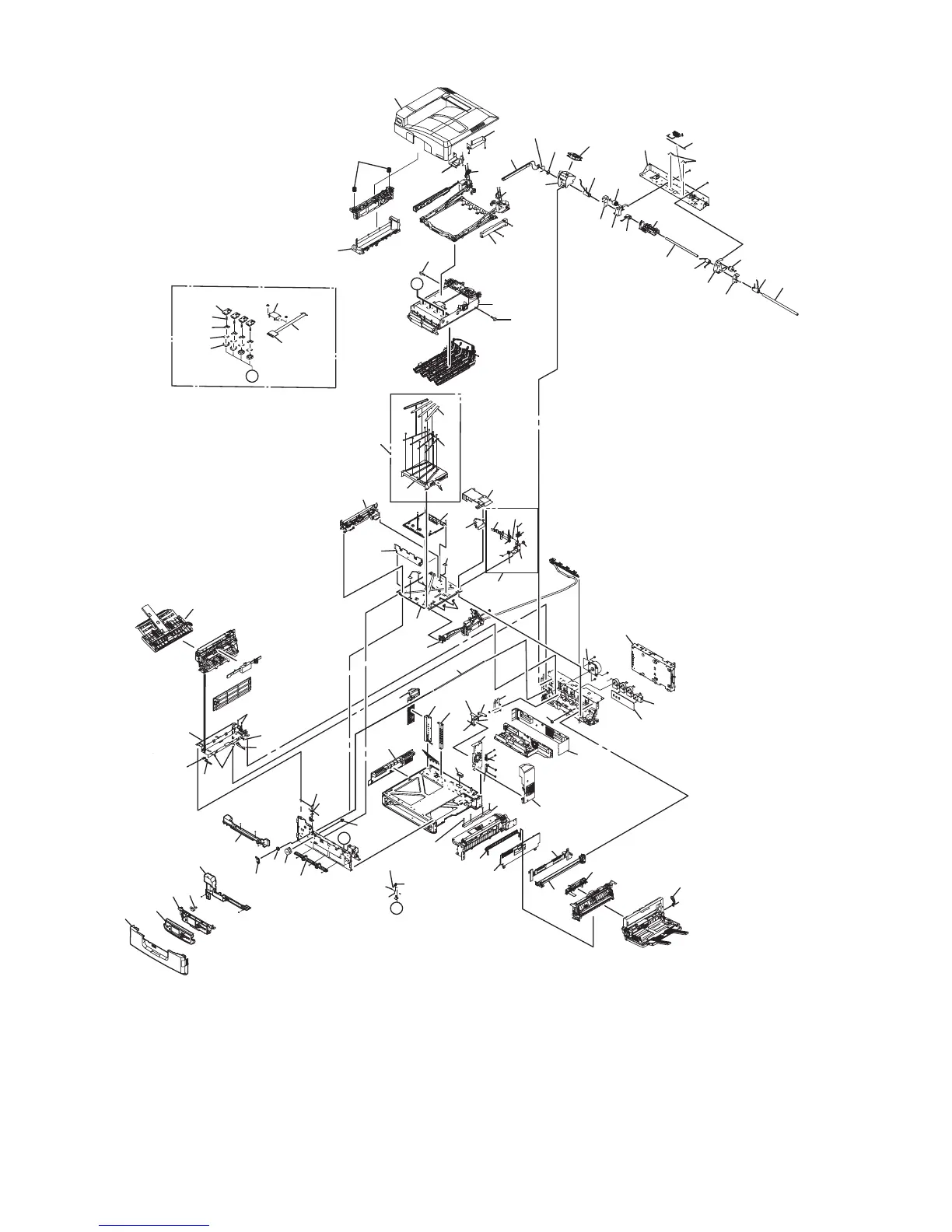

Parts List 2.1 Printer
s7400-042
B
B
A
A
120
95
96
121
93
148
158
159
167
135
122
112
108
109
161
111
110
113
114
101
99
100
105
98
154
115
103
102
106
107
104
4-30
28
31
4-29
24
19
19
7
5
4
3
150
151
130
156
4-157
6
52
33
36
37
34
34
149
35
26
153
51
41
50
47
44
48
46
45
43
43
49
42
18
40
160
119
117
118
20
128
27
(62)
25
10
8
9
116
155
139
2
1
21
22
126
125
132
133
147
123
86
23
162
164
165
166
61
129
131
127
87
124
88
92
94
93
91
(92)
90
89
97
152
164
163
165
166
(53-60)

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
