Xerox Phaser 7400 Service Manual

2-8 Phaser 7400 Color Printer Service Manual

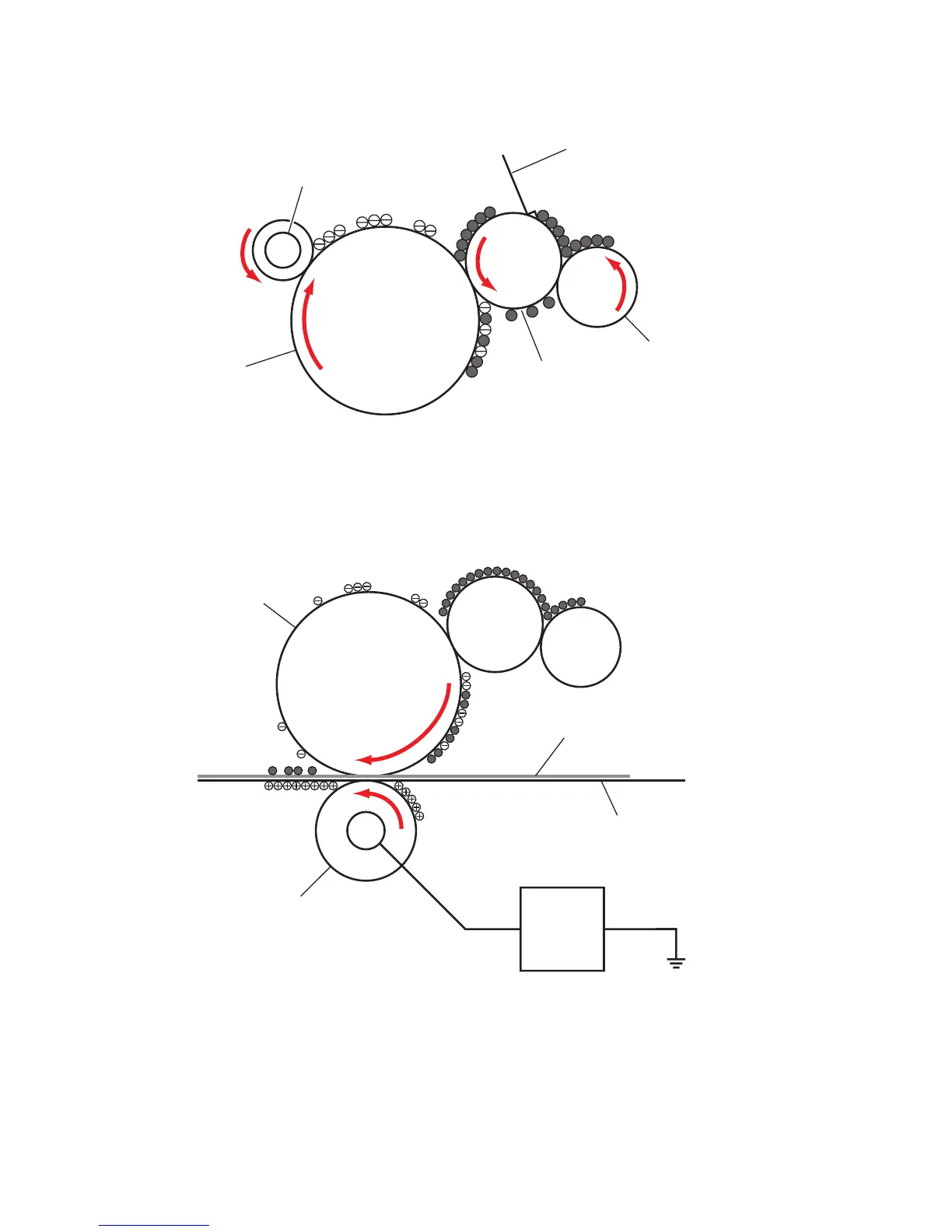

■ The toner is attracted to the latent image on the surface of the drum at the
point where the drum is in contact with the developing roller.
4. Transfer: The Transfer Roller, made of a conductive sponge, presses the paper
against the surface of the drum. This process sandwiches the paper between the
drum and the Transfer Unit belt. A positive charge, supplied by the HVPS
through contacts on the Transfer Unit, is applied to the Transfer Roller attracting
the negatively-charged toner from the surface of the drum onto the paper.
Charge
Roller
Developer
Roller
Toner
Cleaning
Blade
Sponge
Roller
Drum
s7400-019
HVPS
s7400-020
Drum
Transfer
Roller
Paper
Transfer Unit
Belt

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
