Xerox Phaser 7400 Service Manual

Theory of Operation 2-9

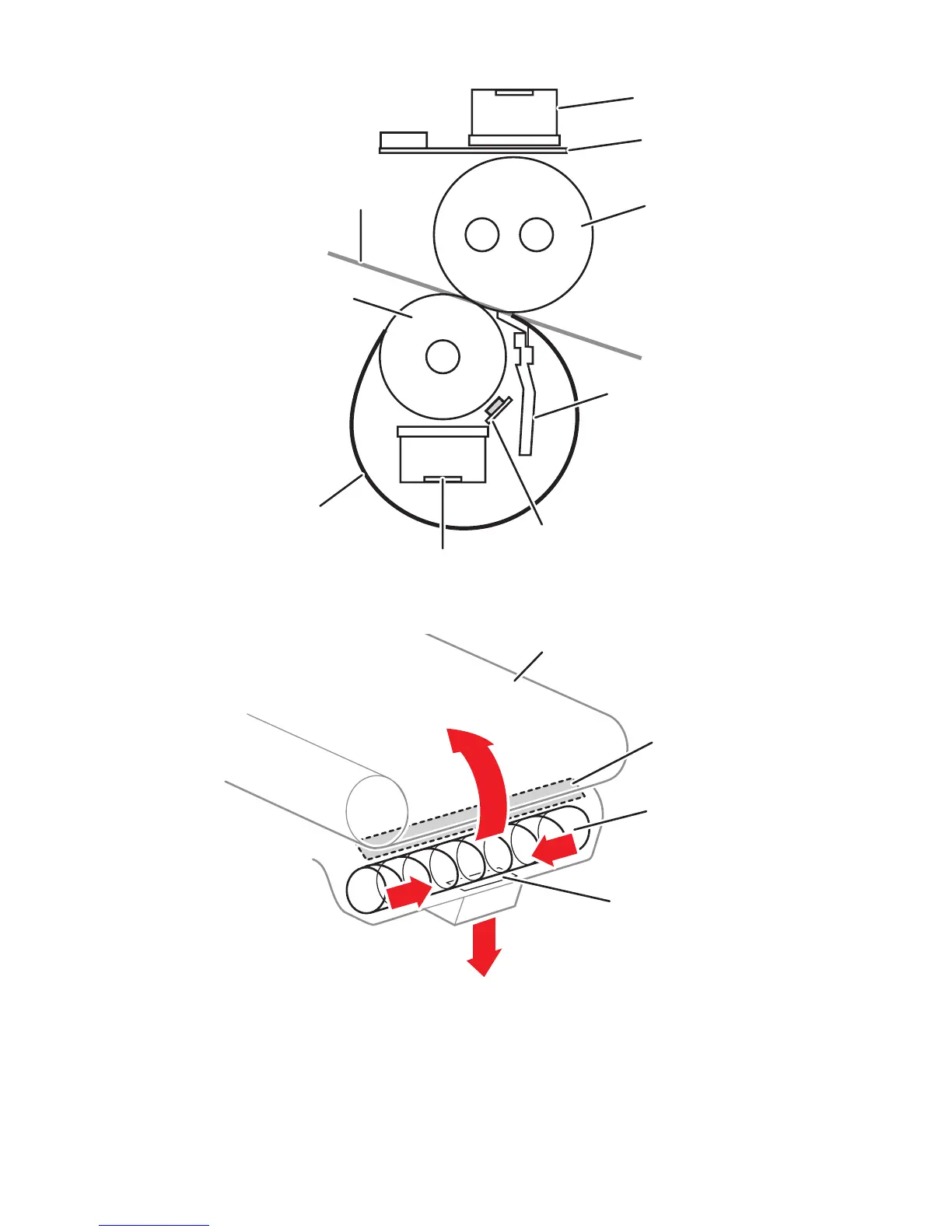

5. Fusing: The Fuser uses a combination of heat and pressure to bond the toner
image to the paper.
6. Transfer Unit Cleaning: Toner remaining on the Transfer Unit belt is removed
by a cleaning blade and transported by Auger to the toner waste port.
7. Imaging Unit Cleaning: Toner remaining on the drum, following image
transfer to the media, is scraped off by a cleaning blade and collected.
8. Paper Exit: The paper is then advanced either upward to the Top Exit or
downward towards the Side Exit depending on the Exit Gate position.
9. Waste Toner Recovery: Excess toner collected from the Imaging Unit drums
and the Transfer Unit belt is carried by an Auger Tube to the Waste Toner
Reservoir located behind the Front Door.
Heat Roller
Pressure Roller
Pat
Thermistor
Thermistor
Thermostat
Paper
Thermostat
Fuser Belt
s7400-021
s7400-023
Transfer Unit Belt
Cleaning Blade
Auger
Toner Waste Port
Direction of Belt Rotation

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
