Xerox Phaser 7400 Service Manual

Theory of Operation 2-11

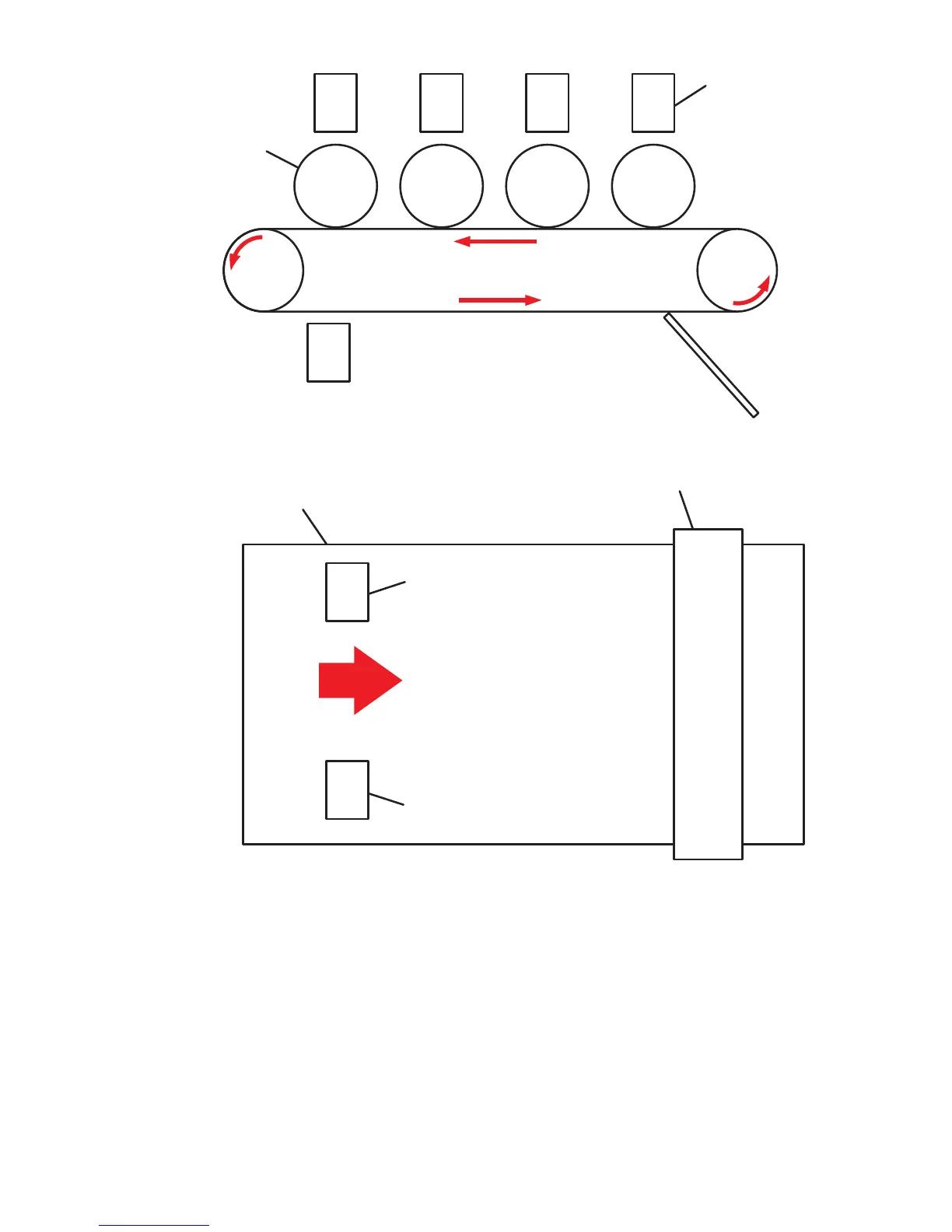

The Color Registration Sensors are used to measure the amount of misalignment
based on the position of the color patches in relation to the black toner patch that
precedes them. According to this measurement, the printer determines the correct
value and automatically adjusts color registration in the main scanning, sub-scanning,
and diagonal directions.
s7400-041
Belt Running Direction
C
Color Registration Sensor
Belt Running Direction
Cleaning Blade
Cleaning Blade
(Transfer Unit as seen from below)
Color Registration Front Sensor
Color Registration Rear Sensor
Transfer Belt
C
M
M
Y
Y
K
LED Head
Imaging Unit
Drum
Transfer Unit
Belt
K

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
