Xerox Phaser 7400 Service Manual

Wiring Diagrams 10-33

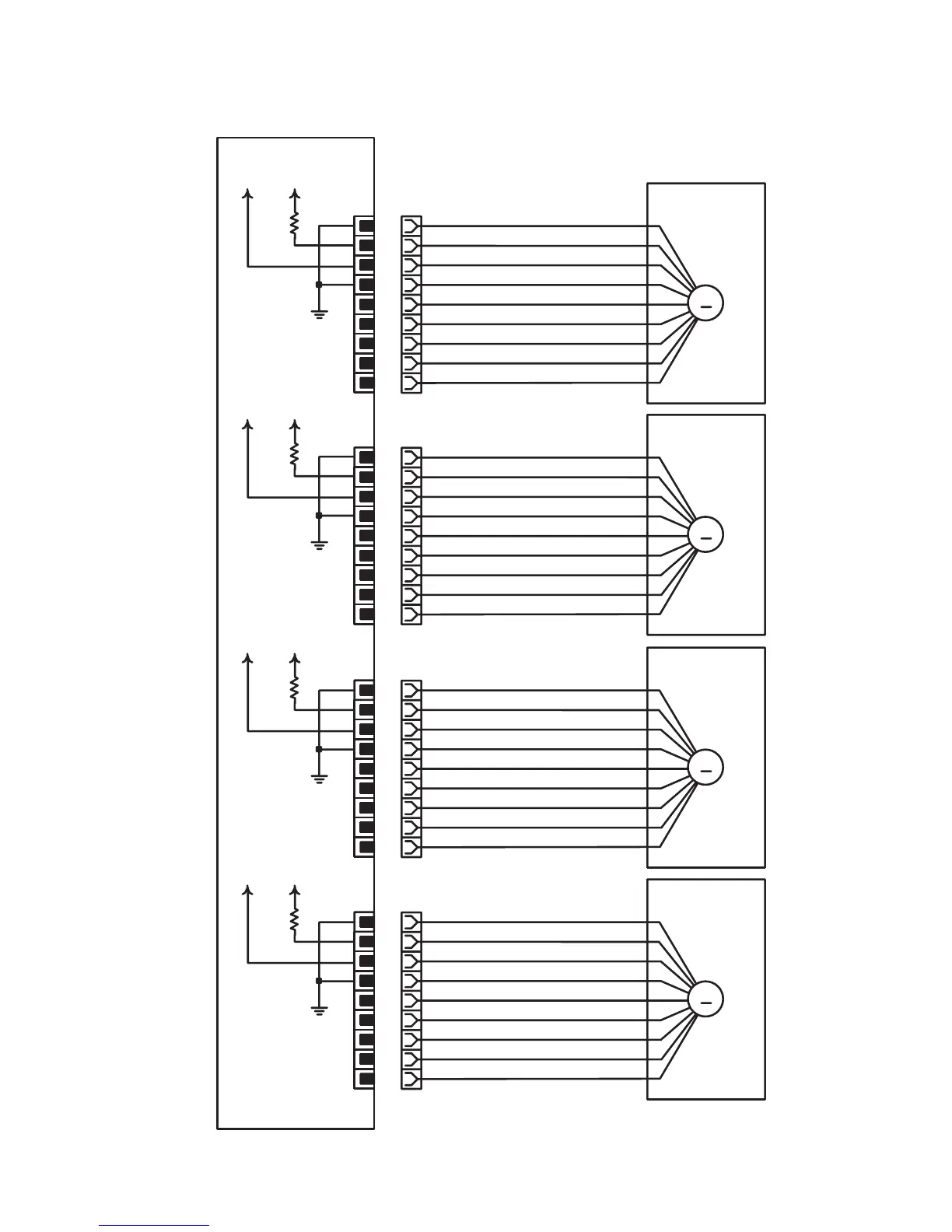

Motor Driver Board (3/6)
Motor Driver Board
M
Cyan Imaging Unit
Motor
DC3
1
2
3
4
5
6
7
8
9
+5VDC+24VDC
M
Magenta Imaging Unit
Motor
DC2
1
2
3
4
5
6
7
8
9
M
Yellow Imaging Unit
Motor
DC1
1
2
3
4
5
6
7
8
9
M
Black Imaging Unit
Motor
DC0
1
2
3
4
5
6
7
8
9
s7400-369
GND
+5V
+24V
GND
DC3ON
CIDLOCK
CWCCW
DC3CLK
GAINID
GND
+5V
+24V
GND
DC2ON
CIDLOCK
CWCCW
DC2CLK
GAINID
GND
+5V
+24V
GND
DC1ON
CIDLOCK
CWCCW
DC1CLK
GAINID
GND
+5V
+24V
GND
DC0ON
CIDLOCK
CWCCW
DC0CLK
GAINID
+5VDC+24VDC
+5VDC+24VDC
+5VDC+24VDC

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
