Programming
1389
below. If no bandwidth search target is found, only the result of the
insertion loss obtained with the marker is displayed.

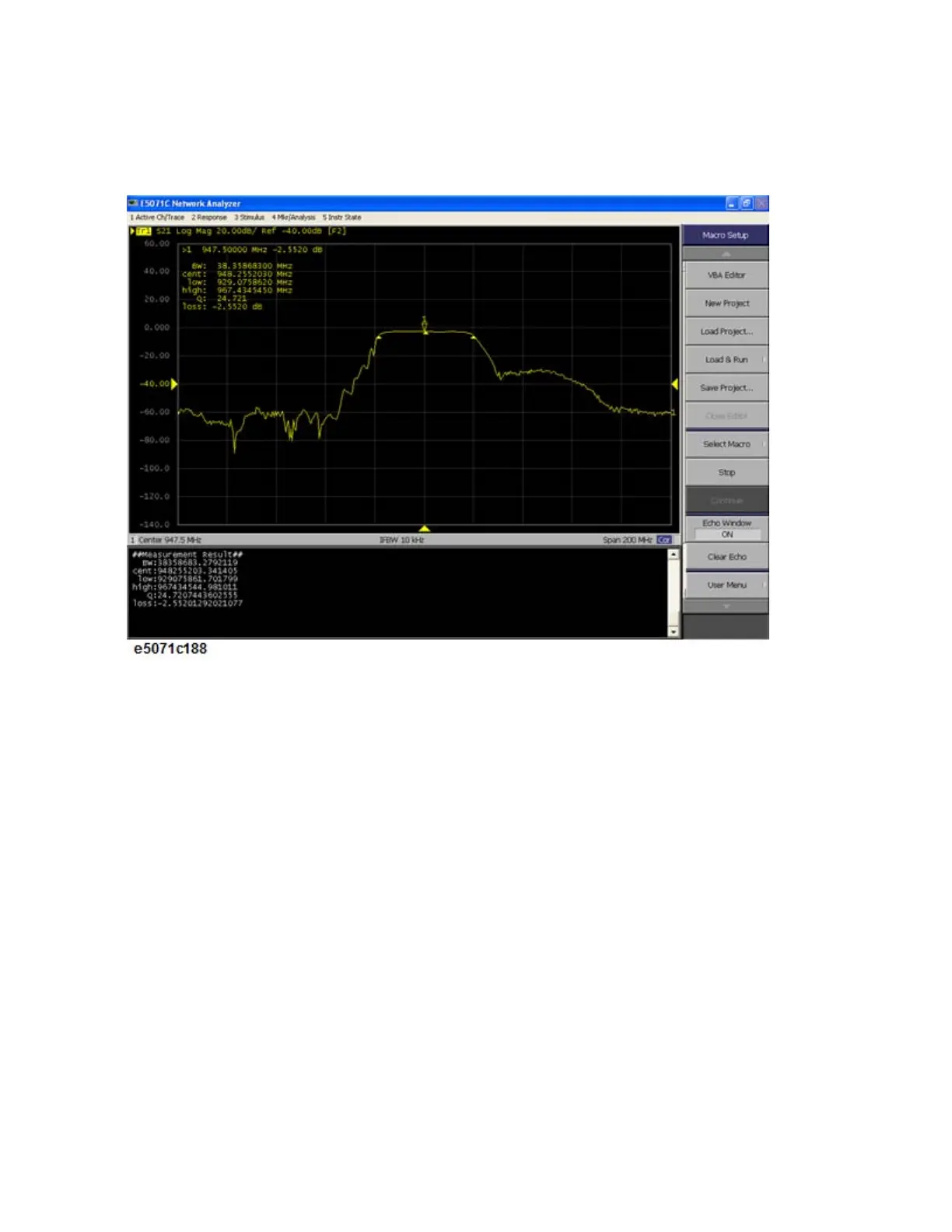

Example of display after executing the program in "apl_bsc.vba"
The basic measurement program (object name: mdlBscMeas) is described
in detail below. Line numbers are added for description purpose only and
do not appear in the actual program source code.
Lines 120 to 160
Store the sweep center value (947.5 MHz), the sweep span value (200
MHz), the number of measurement points (401), the IF bandwidth (10
kHz), and the power level (-10 dBm) into the variables Center, Span, Nop,
IfBw, and Pow, respectively.
Lines 170 to 210
Store the number of traces (1), the measurement parameter (S21), the
data format (log amplitude), the calibration kit number (4: 85032F), and
the save file name (State08.sta) into the variables, NumTrac, Par, Fmt,
CalKit, and File, respectively.
Line 250
Returns the E5071C to the preset state.
Lines 290 to 300
