more than 1601 with 1 channel and 4 traces. Click OK.

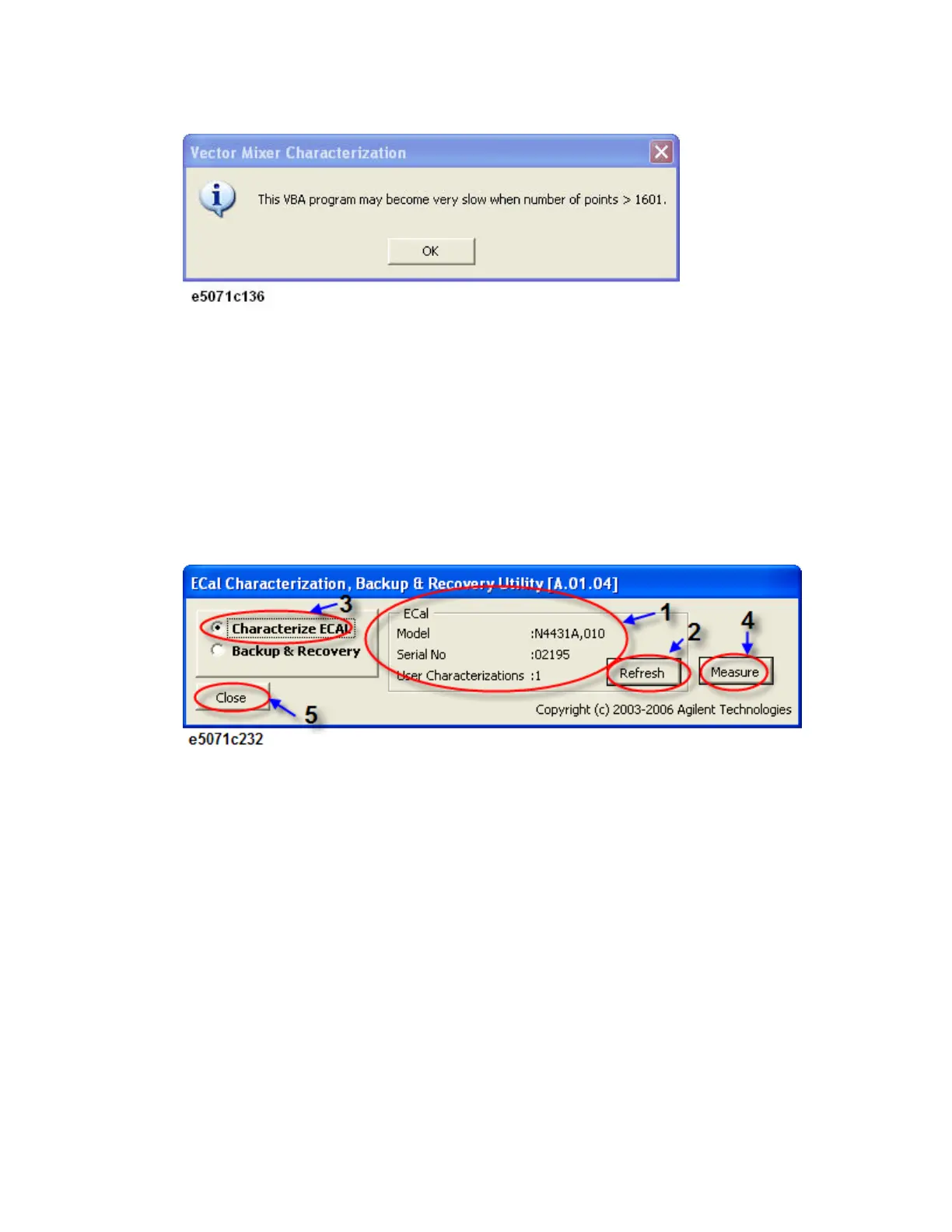

e. The ECal part (1 in the figure below) displays the information of the
ECal module connected to the E5071C.
f. Click Refresh (2 in the figure below) to update the information if you
have connected another ECal module after the macro has been
started.
5. Measuring User Characteristics
a. Select Characterize ECAL (3 in the figure below) to display the User
Characteristic Measurement screen.
b. After connecting the adapter to the ECal module as necessary,
connect each port of the ECal module and the test port of the
E5071C.
