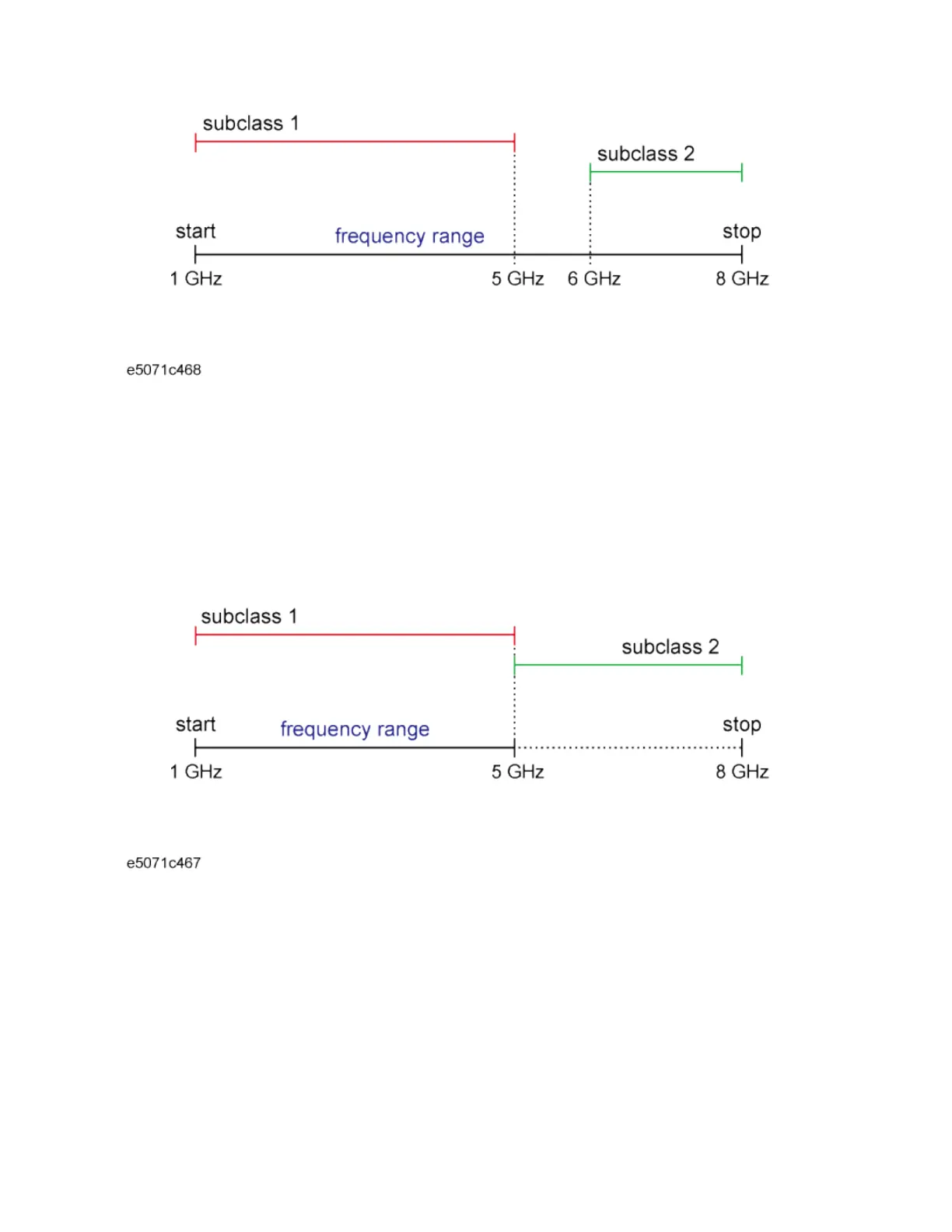

Example 3, When a frequency range specified with a subclass lies outside the measurement frequency range
For a measurement frequency range (1 GHz to 5 GHz), if you define a
standard of subclass 1 (1 GHz to 5 GHz) and a standard of subclass 2 (5
GHz to 8 GHz), calibration possible for subclass 2 although it is out of the
measurement frequency range. The calibration coefficients, however, are
disregarded. (There is no check mark on the softkey.) Note that, because
the standard of subclass 1 covers the measurement frequency range, Done
is available.
Example 4, When a part of a frequency range specified with a subclass lies outside the measurement frequency range
For a measurement frequency range (1 GHz to 6 GHz), if you define a
standard of subclass 1 (1 GHz - 5 GHz) and a standard of subclass 2 (5
GHz to 8 GHz), a part of subclass 2 (6 GHz to 8 GHz) lies outside the
measurement frequency range, but the other part (5 GHz to 6 GHz) lies
within it, so calibration is possible.
