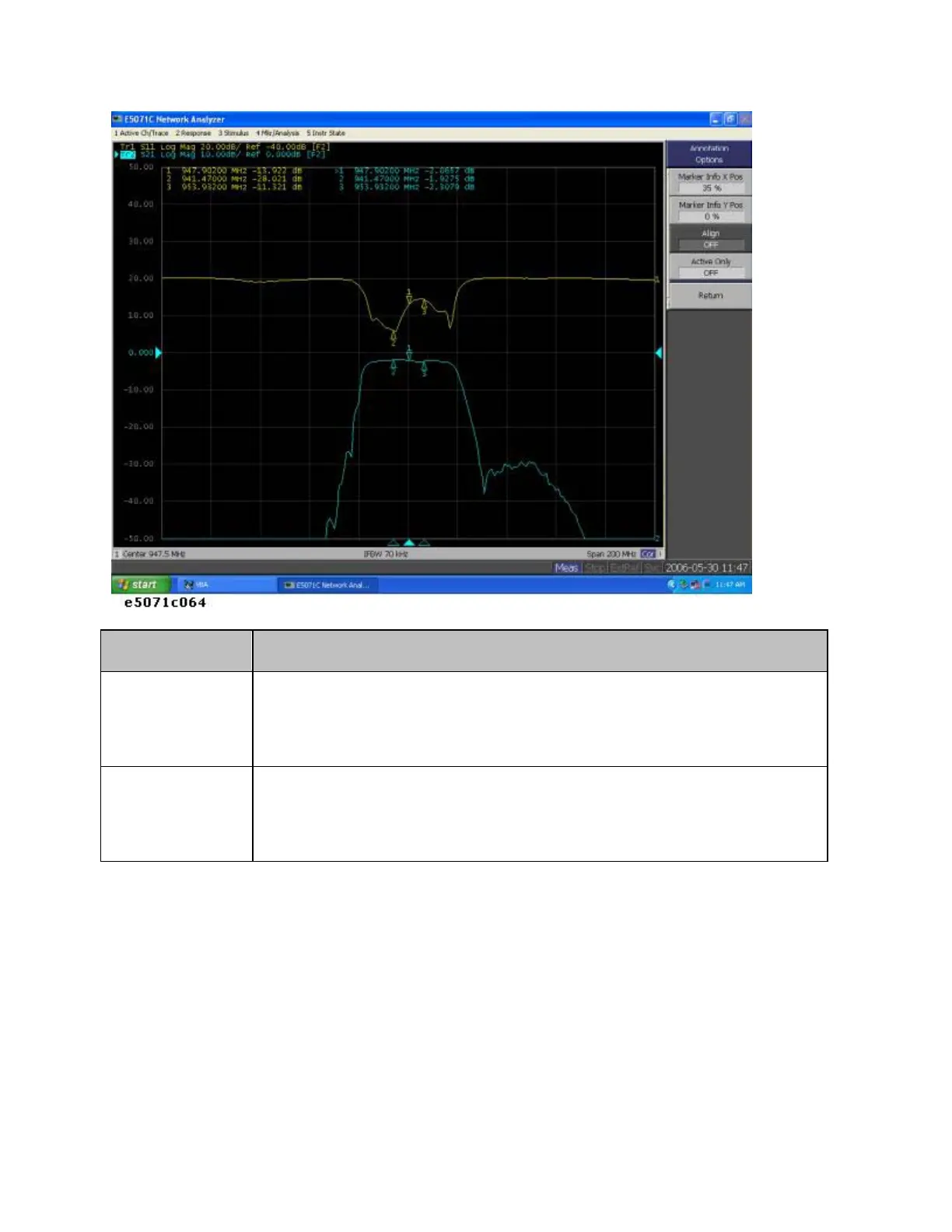

Value Description
Marker Info X
Pos
Specifies the horizontal display position by the width of
the display area as a percentage.
Marker Info Y
Pos
Specifies the vertical display position by the height of the
display area as a percentage.
Operational procedure
1. Press Channel Next/Channel Prev keys to activate the channel for
which you want to set marker coupling.
2. Press Marker Fctn key.
3. Click Annotation Options.
4. Click Marker Info X Pos to set the horizontal display position.
5. Click Marker Info Y Pos to set the vertical display position.
Aligning Marker Value Display
This section describes how to align maker value displays.
