Limit Test: ON Limit Test (Turn it ON)
2. Turn on the limit line and limit test for Trace 2.
Setup Description Key Operation
Activating Trace 2
Trace Next
Limit Line: ON Limit Line (Turn it ON)
Limit Test: ON Limit Test (Turn it ON)
3. Apply a trigger to execute the measurement.
Setup Description Key Operation
Trigger Mode: Single Trigger > Single (or Continuous)

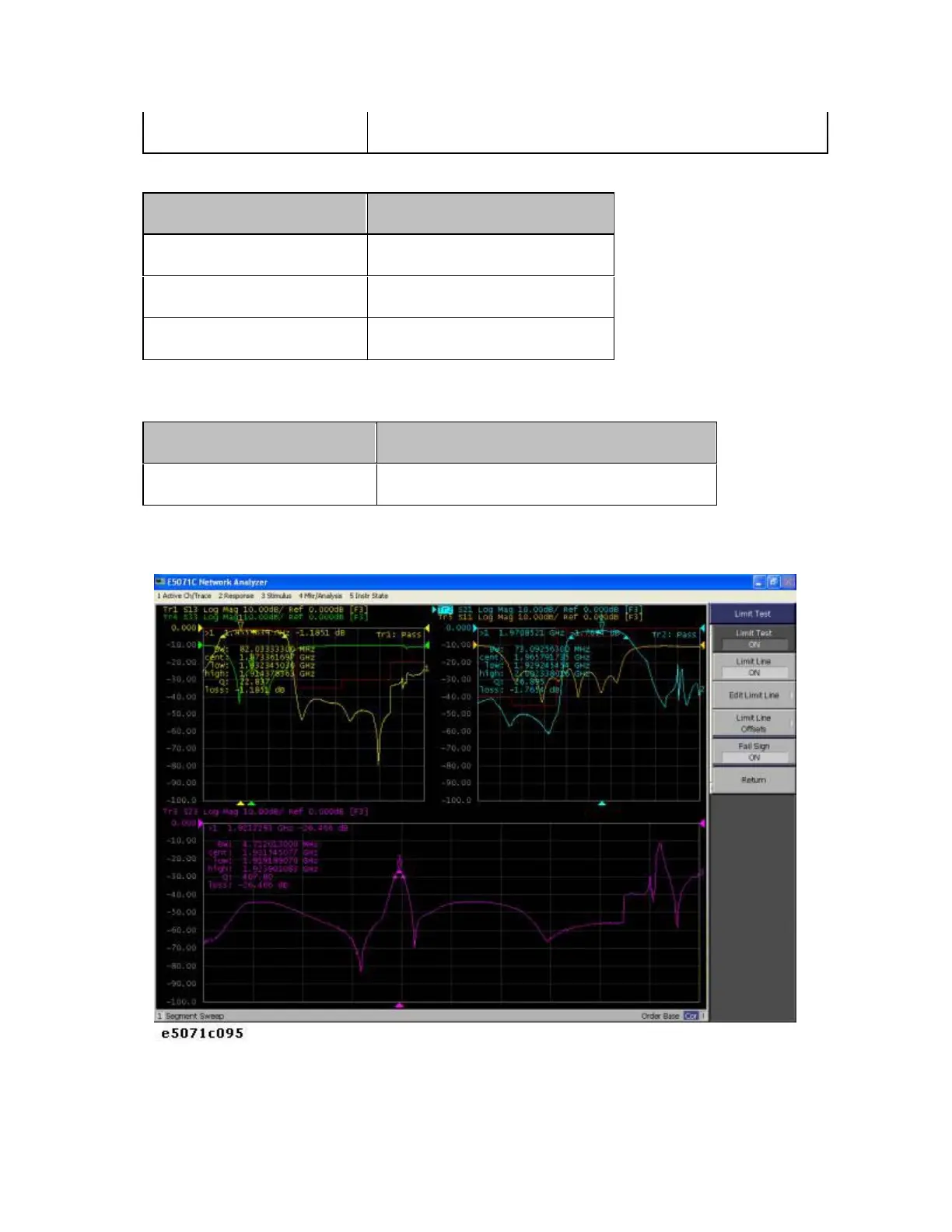

Limit test results
4. Maximize the screen display of Trace 1 to examine its details.
