E5071C
414
1. Display the limit table for Trace 1 (S13).
Setup Description Key Operation
Activating Trace 1
Trace Next
Displaying a limit table Analysis > Limit Test > Edit Limit Line
2. Enter the setup data in the limit table for trace 1.

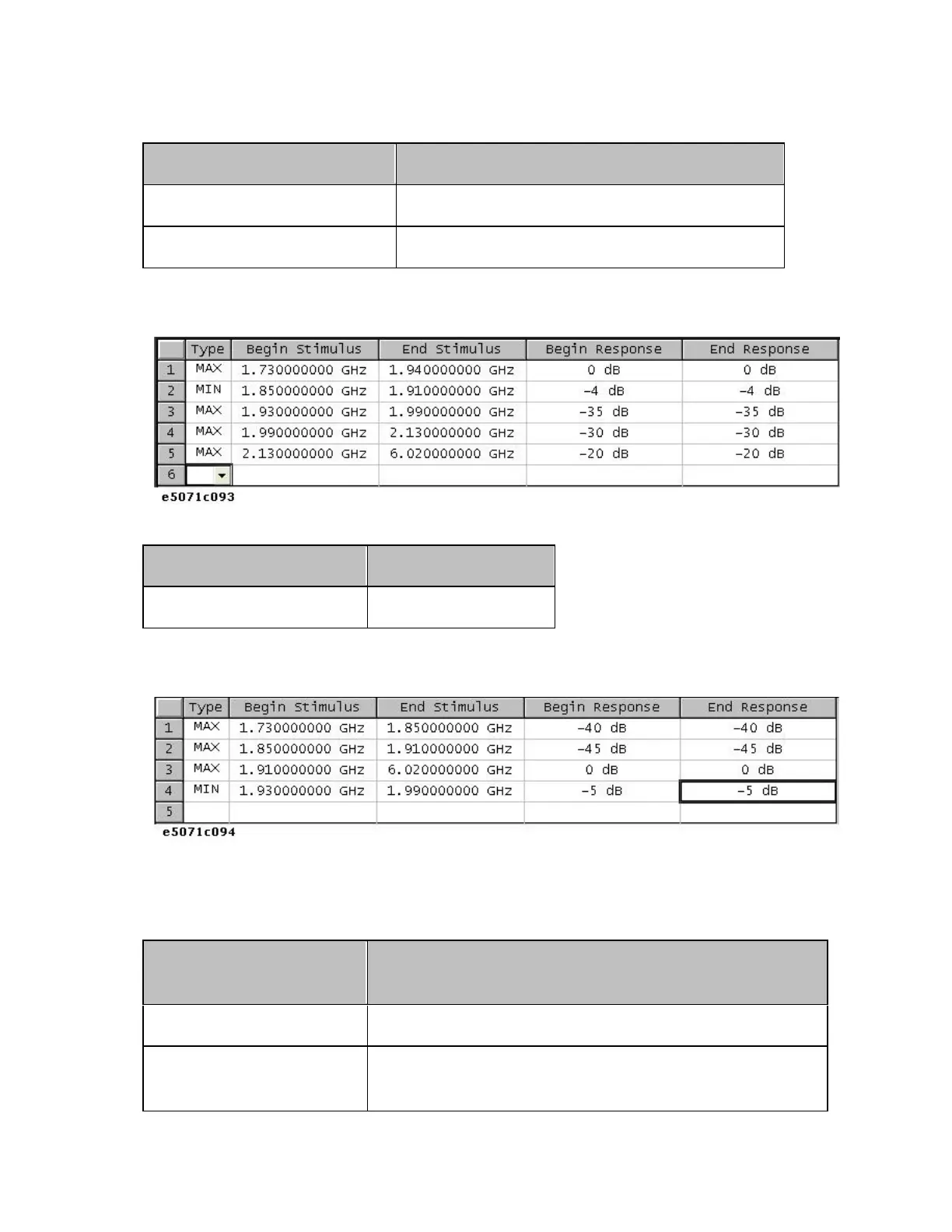

Completed limit table for trace 1
3. Display the limit table for Trace 2 (S21).
Setup Description Key Operation
Activating Trace 2 Trace Next
4. Enter the setup data in the limit table for trace 2.
Completed limit table for trace 2
11. Execute the Limit Test
The limit test is executed.
1. Turn on the limit line and limit test for Trace 1.
Setup
Description
Key Operation
Activating Trace 1
Trace Prev
Limit Line: ON Analysis > Limit Test - Limit Line (Turn it
ON)
To Next Page
