Measurement
413
Setup Description Key Operation
Activating Trace 5
Trace Next
Marker 1: ON
Marker
Search/Tracking: ON Marker Search > Tracking (Turn it
ON)
Moving Marker 1 to the peak
in the pass band
Peak > Search Left|Search Right (
press as many times as necessary)
The return loss (response value of Marker 1) in this example is 13.80
dB.

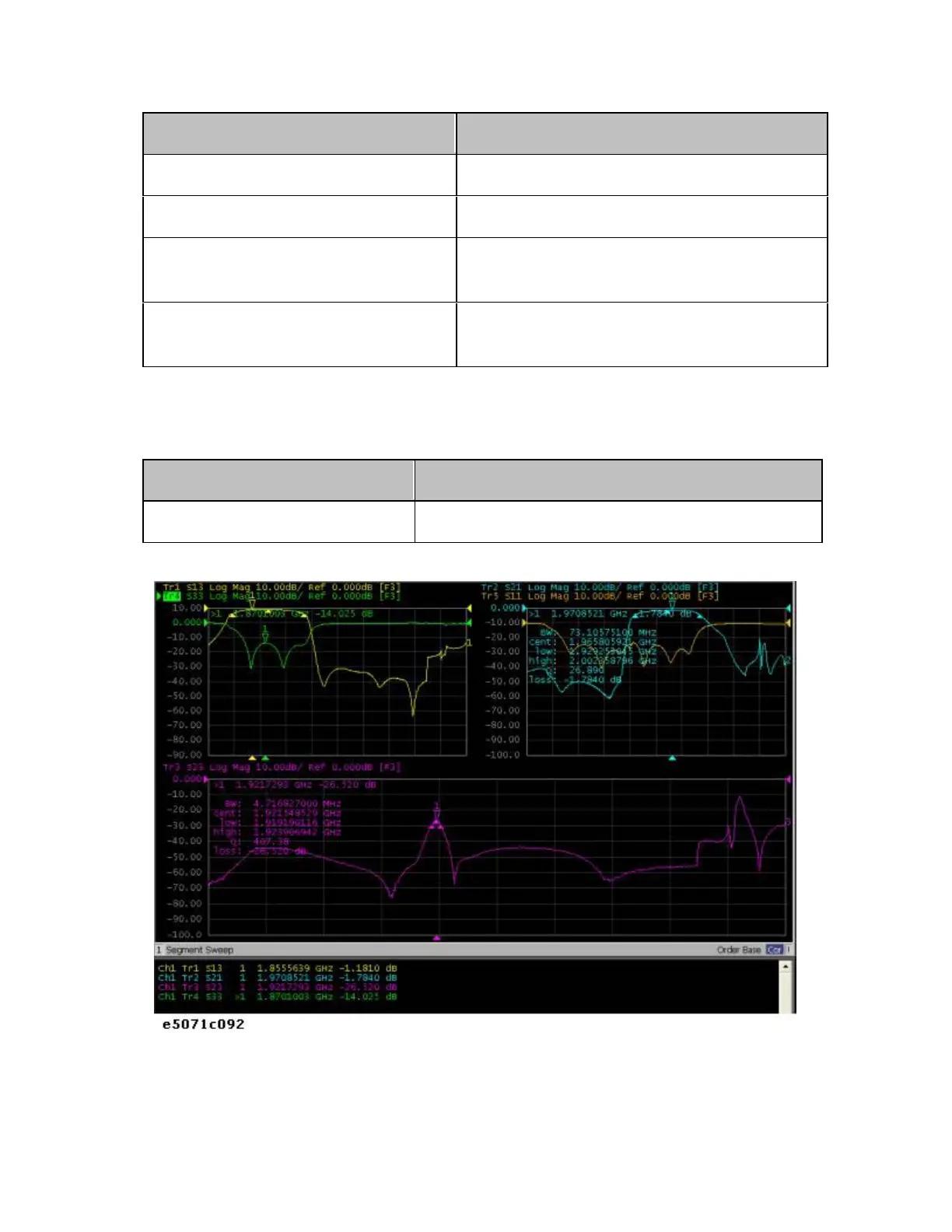

6. Turn on the marker table display.
Setup Description Key Operation
Marker table display: ON Marker Fctn > Marker Table (Turn it ON)
Activating Marker Table
10. Define the Setup for a Limit Table
Follow the steps below to make entries in the limit table.
