Agilent Technologies E5071C User Manual

Measurement
429
Data format: Smith chart
(marker display: R+jX)
Format > Smith > R + jX
5. Set the measurement parameter (mixed mode S-parameter) and
data format for trace 4.
Setting Description Key Operation
Unbalanced-balanced conversion
of trace 4: ON
Trace next > Analysis > Fixture
Simulator > BalUn (turns it ON)
Measurement parameter: Sdd22
Meas > Sdd22
Data format: Smith chart (marker
display: R+jX)
Format > Smith > R + jX

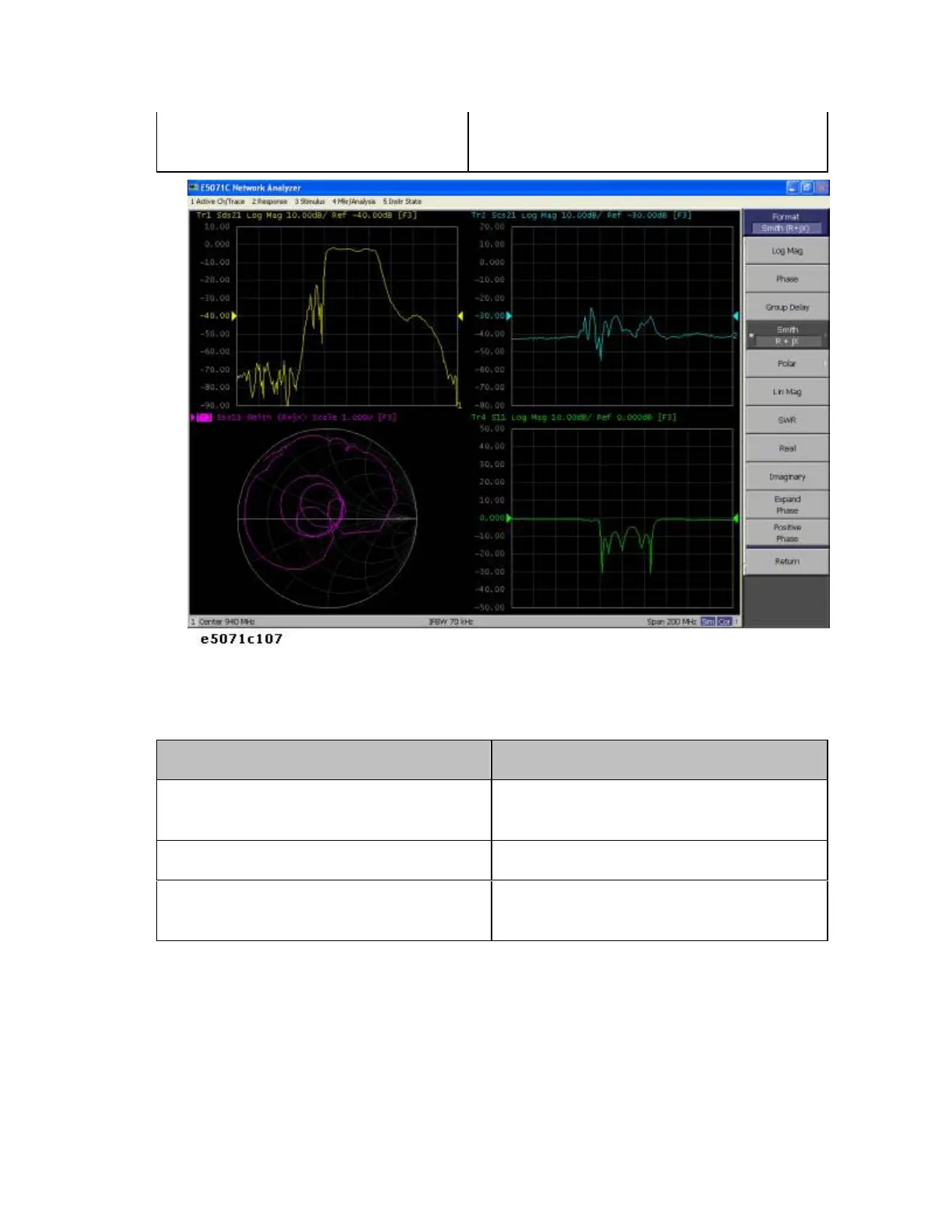

The following figure shows the setting results for each parameter.
