Agilent Technologies E5071C User Manual

E5071C
428

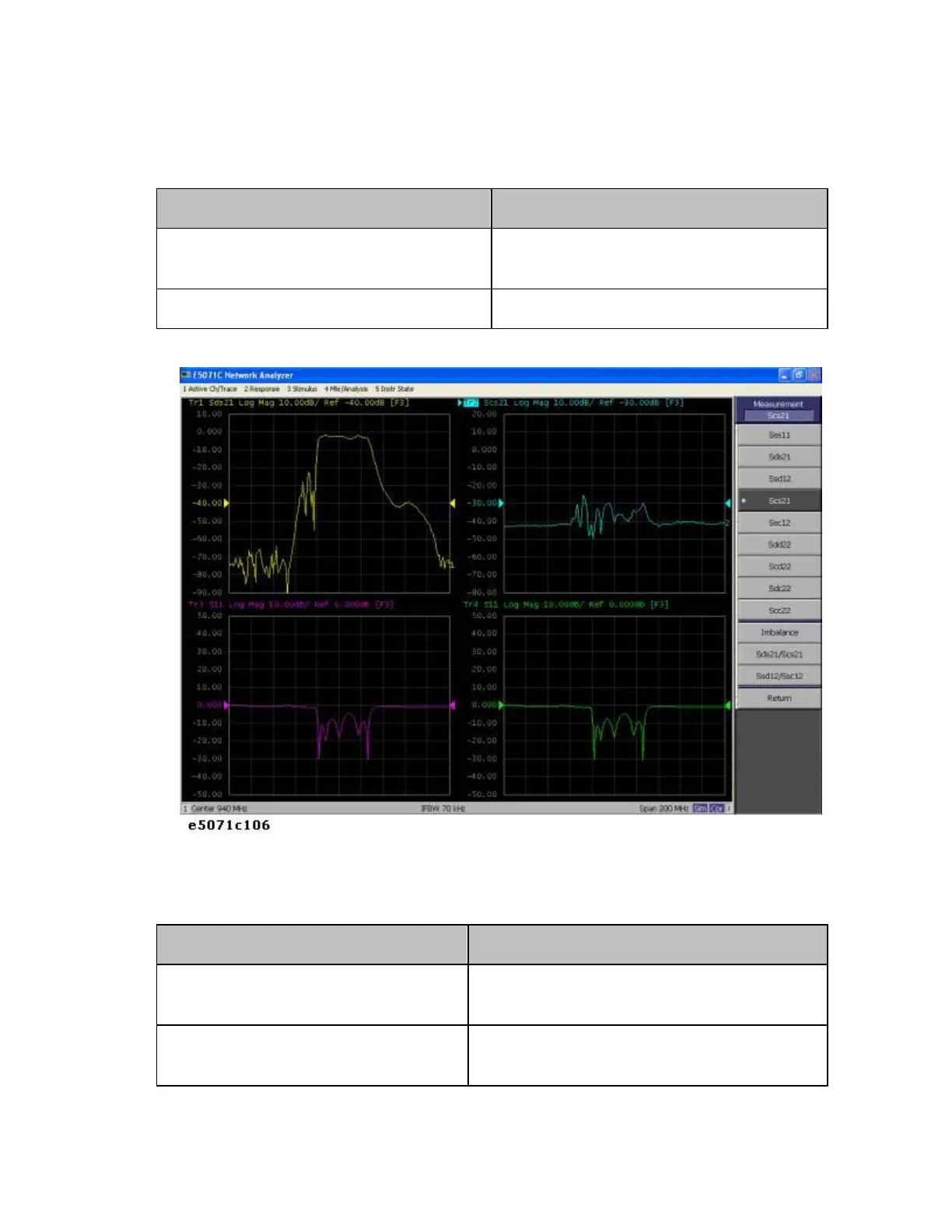

3. Set the measurement parameter (mixed mode S-parameter) and
data format for trace 2.
Setting Description Key Operation
Unbalanced-balanced conversion
of trace 2: ON
Trace next > Analysis > Fixture
Simulator > BalUn (turns it ON)
Measurement parameter: Scs21
Meas > Scs21
4. Set the measurement parameter (mixed mode S-parameter) and
data format for trace 3.
Setting Description Key Operation
Unbalanced-balanced
conversion of trace 3: ON
Trace next > Analysis > Fixture
Simulator > BalUn (turns it ON)
Measurement parameter:
Sss11
Meas > Sss11
