6.2.6 Installing the power distribution board

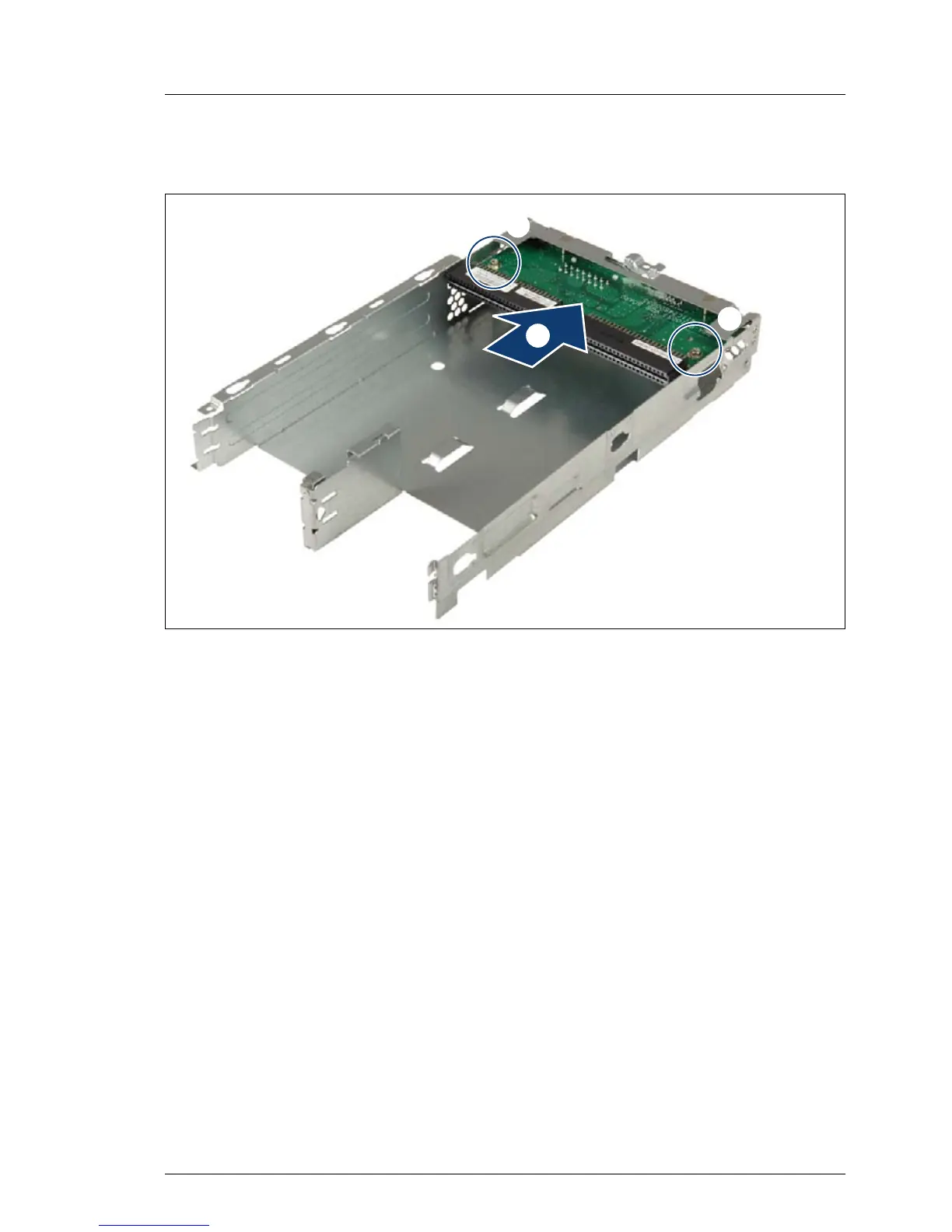

Figure 25: Installing the power distribution board in the PSU cage
Ê Insert the power distribution board in the PSU cage (1).
Ê Fasten the power distribution board with two screws (2).
