RX100 S7
Upgrade and Maintenance Manual 127
Power supply
6.3.2.4 Removing the defective power supply module

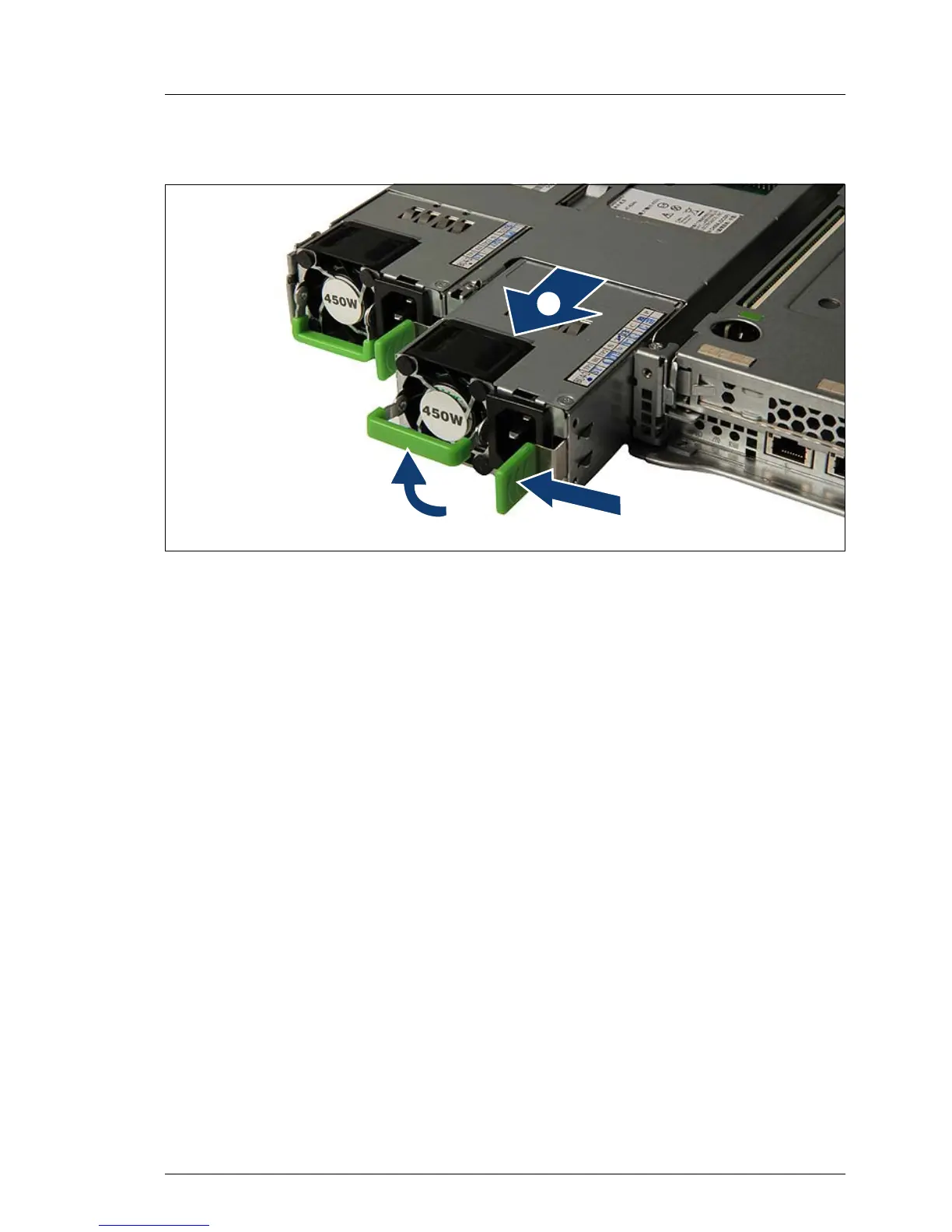

Figure 46: Unlocking and removing the power supply module
Ê Push the handle of the power supply module halfway upward in the direction
of the arrow (1).
Ê Push the lock in direction of the arrow (2).
Ê Grip the handle and pull out the power supply module in the direction of the
arrow (3).
V CAUTION!
Never leave the bay for the power supply module empty for more than
two minutes during operation. Otherwise, excessive temperatures could
damage system components.
