RX100 S7
Upgrade and Maintenance Manual 139
Power supply
6.3.3.10 Connecting the power cables

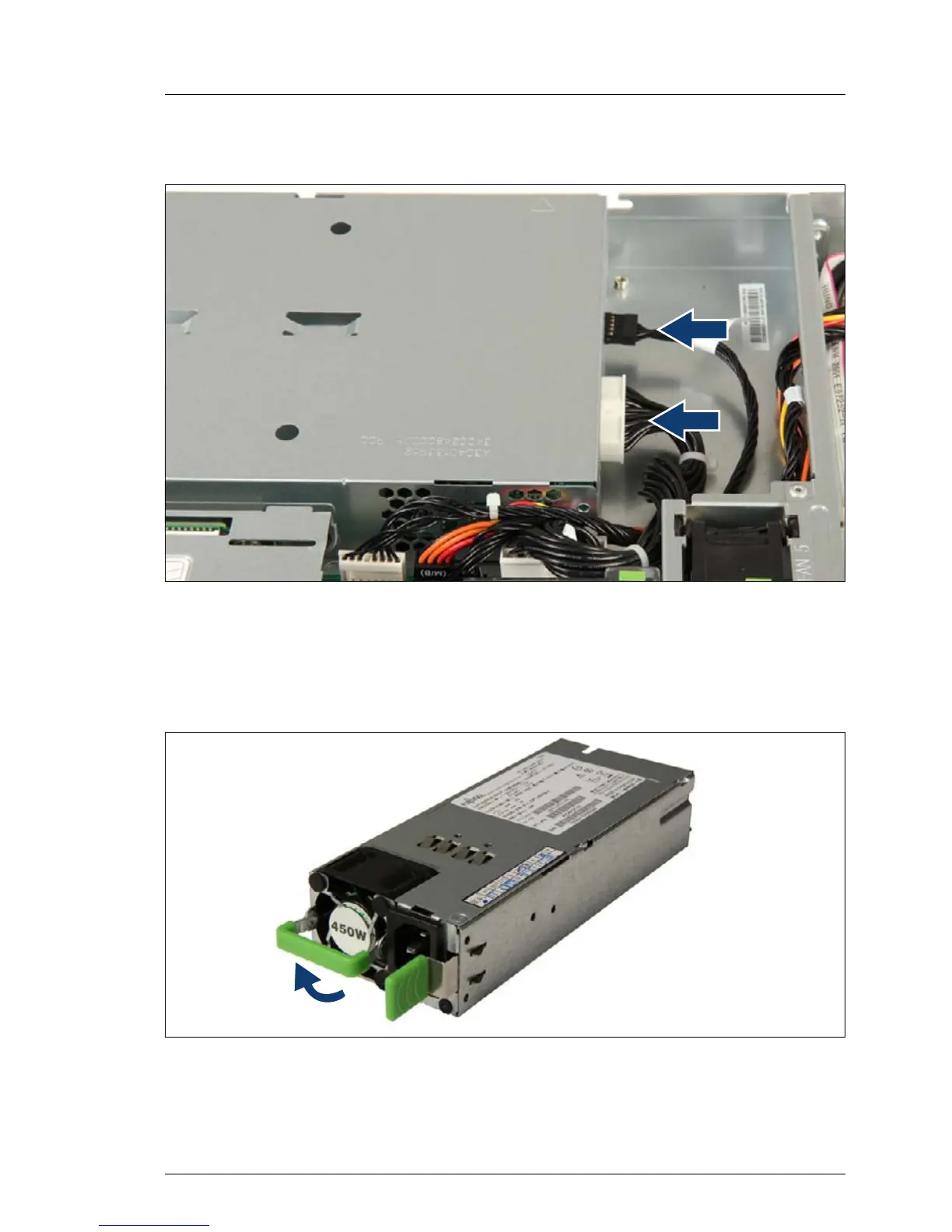

Figure 61: Connecting the power cables
Ê Connect the two power cables to the power distribution board.
6.3.3.11 Installing the power supply module
Figure 62: Unlocking the power supply module
Ê Push the handle of the power supply module halfway upward in the direction
of the arrow.
