Optical disk drive
12.2.5 Installing the retaining spring on the ODD

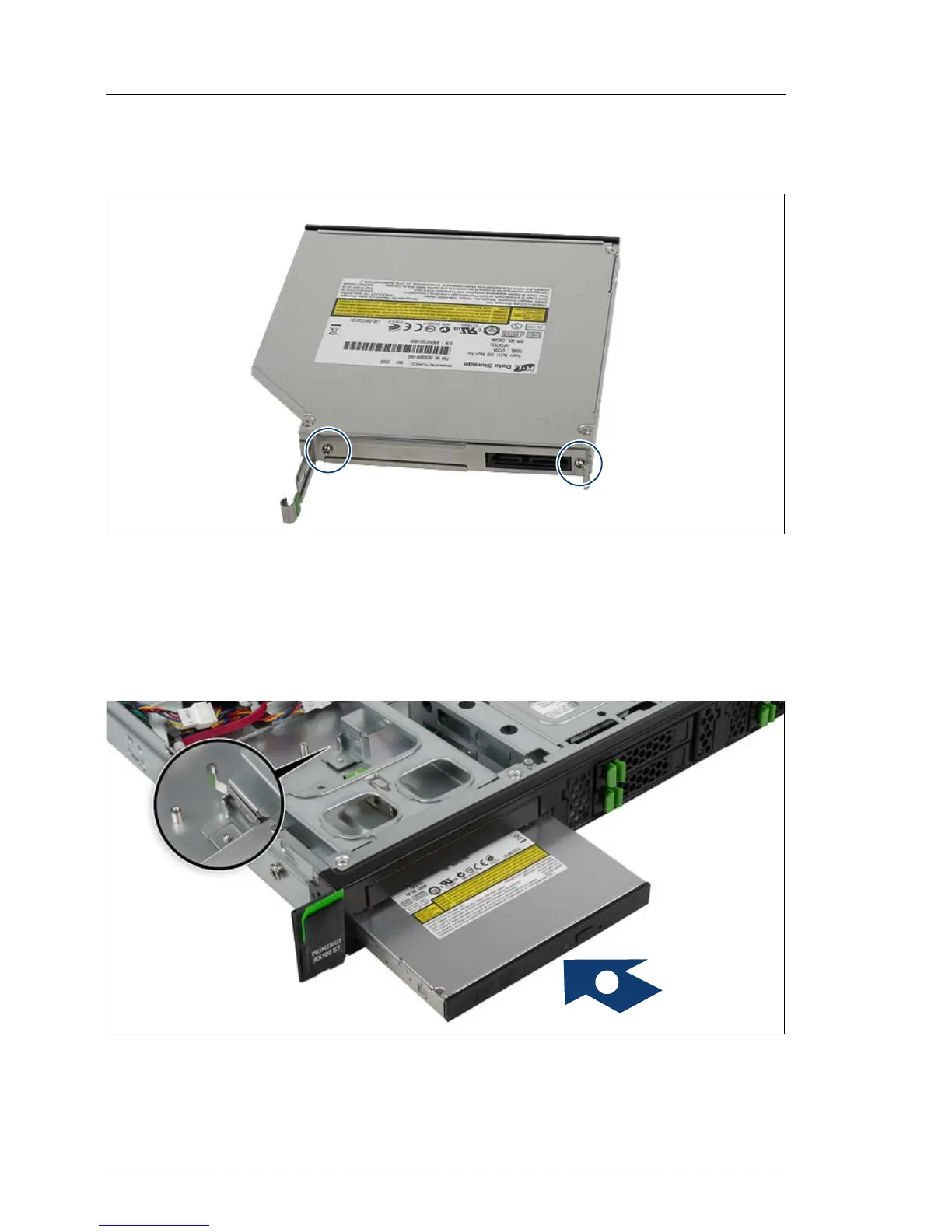

Figure 197: Installing the retaining spring on the ODD
Ê Fasten the retaining spring with two screws to the rear side of the ODD.
12.2.6 Installing the ODD
Figure 198: Installing the ODD
Ê Push the ODD into the bay (1) simultaneously pressing the front of the ODD
slightly down until the retaining spring engages (2).
/
