Ê Thread the SGPIO line through the recess (see circle).

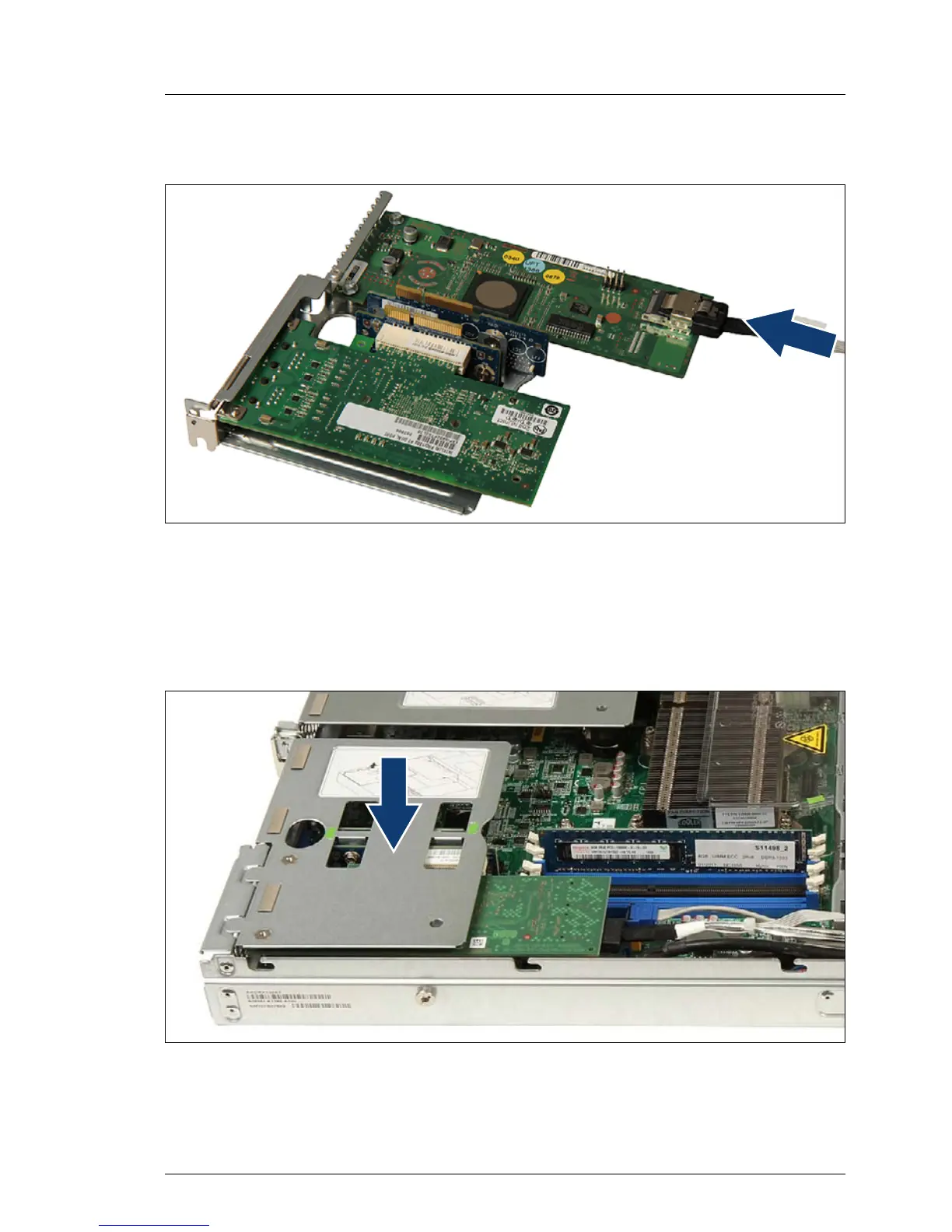

Figure 330: Connecting the RAID card cable to the RAID controller
Ê Connect the RAID card cable to the RAID controller.
16.11.6 Installing the riser module 2
Figure 331: Installing the riser module 2
Ê Insert the riser cards into the system board slots.
