9.5.3.3 Removing the BBU with the BBU holder

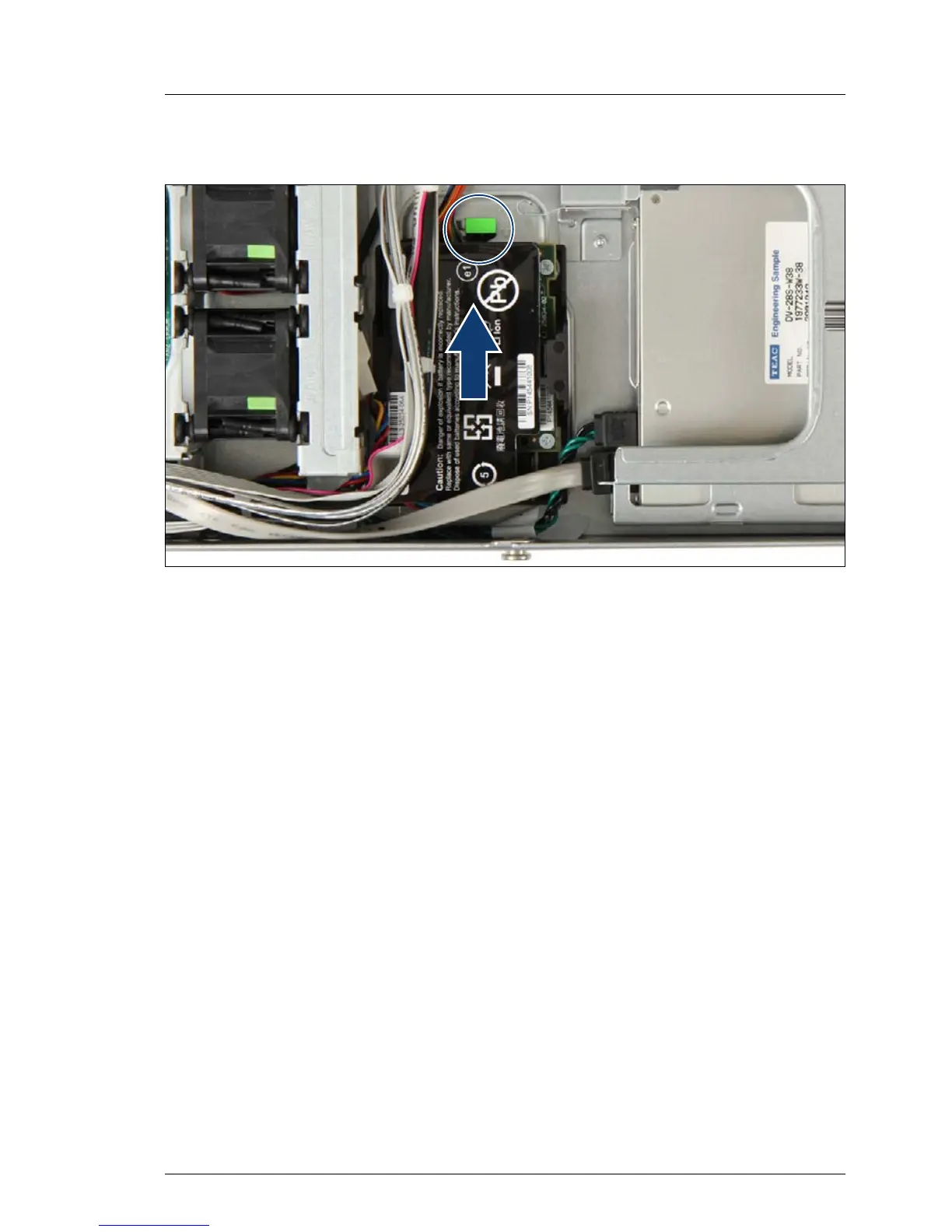

Figure 160: Removing the BBU with the BBU holder
Ê Lift up the green locking handle on the BBU holder (see circle) while sliding
the BBU holder in direction of the arrow as far as it will go.
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the BBU holder.
Ê Lift the BBU holder out of the chassis.
