122 Upgrade and Maintenance Manual
RX100 S7
Power supply
6.3.1.4 Installing the second power supply module

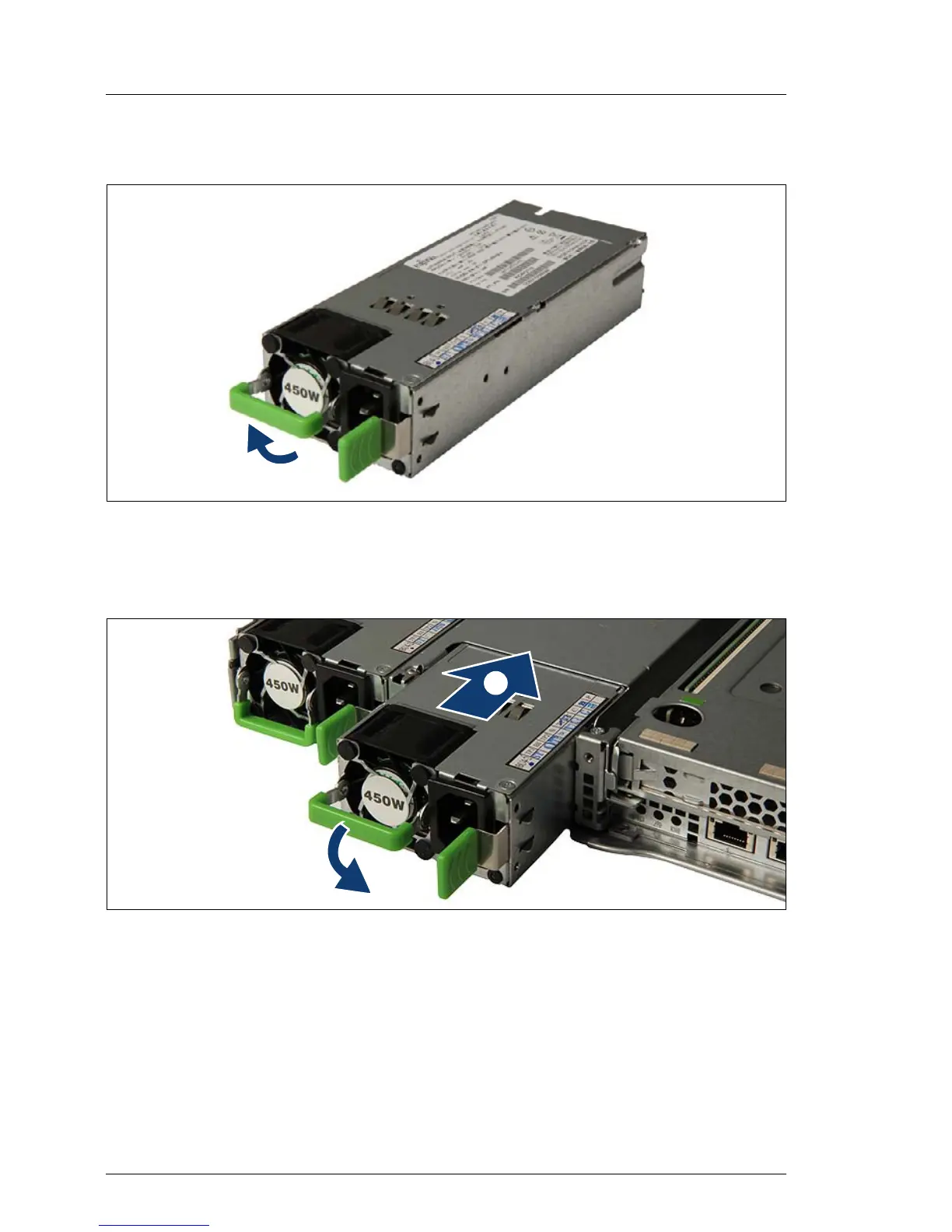

Figure 40: Unlocking the power supply module
Ê Push the handle of the power supply module halfway upward in the direction
of the arrow.
Figure 41: Installing the second power supply module
Ê Carefully push the power supply module into the empty bay (1) until it stops.
Ê Push the handle of the power supply module as far as it will go in the
direction of the arrow (2).
I Make sure that the power supply module engages correctly in the bay
and is locked in position. This is the only way to prevent the power supply
unit from sliding out of its bay and being damaged during transportation.
