RX100 S7
Upgrade and Maintenance Manual 247
Expansion cards and backup units
9.5.2.4 Preparing the FBU

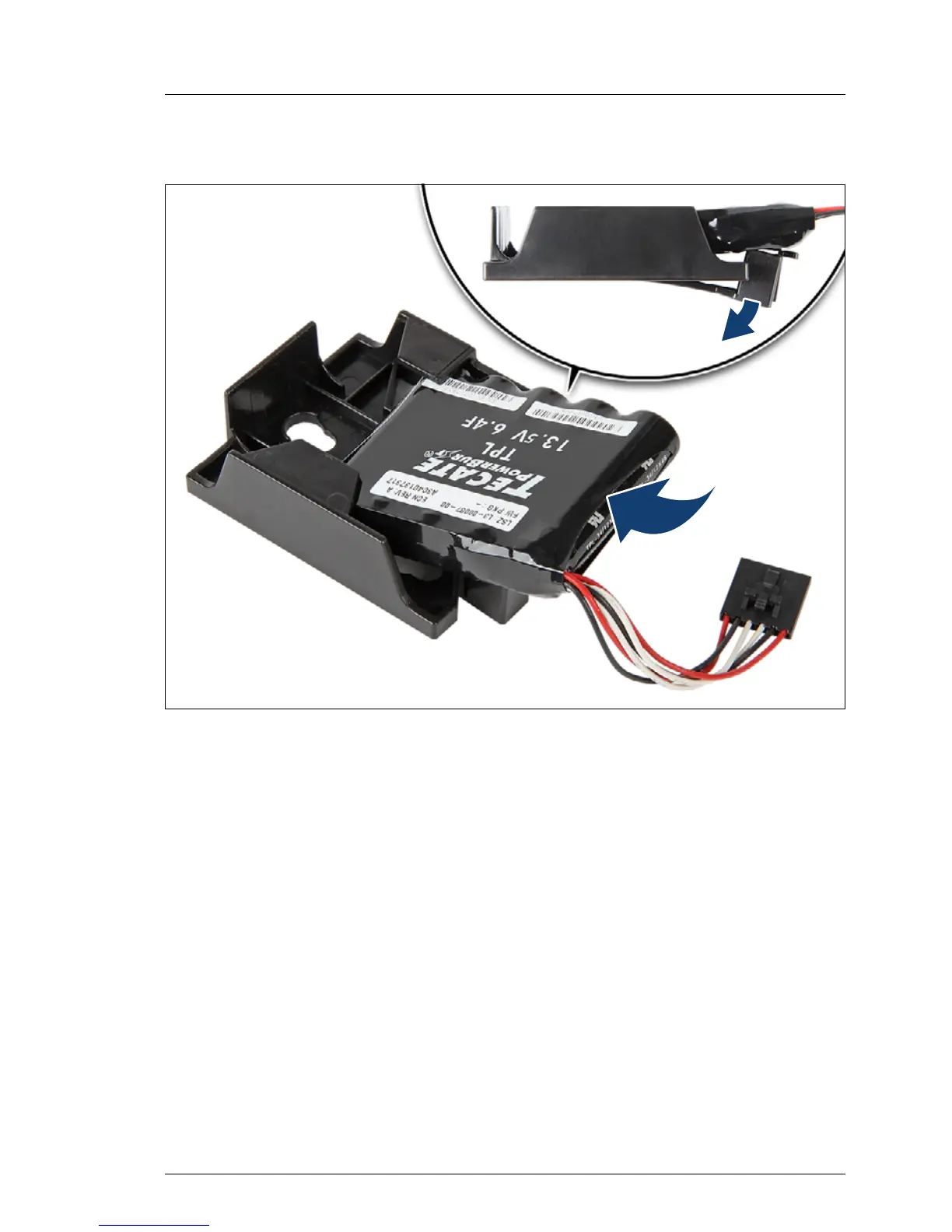

Figure 156: Installing the FBU in the FBU holder (A)
Ê At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Ê Push in the FBU until it locks in place.
